Product Information

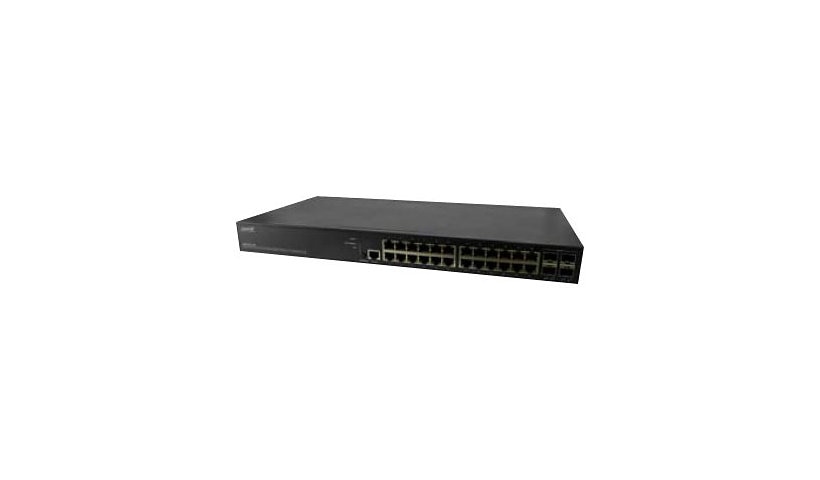

Lantronix's SM24TAT4XB is a managed Layer 3 switch with 24 Gigabit PoE+ ports at up to 30 W and four 1/10G SFP+ ports. It has a 370 W PoE budget with always on PoE, 128 Gbps of backplane capacity and TAA compliance.
Key Features
- 24 x 10/100/1000 RJ-45 PoE+ ports, 30 W
- 4 x 1/10G SFP+ ports
- 370 W PoE budget
- 128 Gbps backplane
- Layer 3, always on PoE
- Rack mount, TAA compliant
Product Information
Brand: Lantronix
Manufacturer: Transition Networks
Product Line: Lantronix
Model: SM24TAT4XB
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Country: North America
Network and Communication
Advanced Switching: Layer 3
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: SNMP 1, SNMP 2c, SNMP 3, Telnet, TFTP
Routing Protocol: IGMP, IGMPv2, IGMPv3, MLD, MLDv2
Authentication Method: RADIUS, Secure Shell (SSH), TACACS+
Encryption: SSL
Performance: Backplane switching capacity: 128 Gbps
Capacity: ACL entries: up to 512
MAC Address Table Size: 32K entries
Jumbo Frame Support: 10240 bytes
Features: Access Control List (ACL) support, Always on PoE, Carrier Sense Multiple Access with Collision Detection (CSMA/CD), Command-line interface (CLI) management, Device Management System (DMS), DHCP client, DHCP relay, DHCP server, DiffServ support, DSCP Precedence, Firmware upgradable, GARP VLAN Registration Protocol (GVRP), IGMP proxy, IGMP querier, IGMP snooping, IP Precedence, LLDP-MED, Loop detection, MAC based VLAN, MLD snooping, Multiple Spanning Tree Protocol (MSTP) support, Port-based VLAN, Private VLAN Edge (PVE), Rapid Spanning Tree Protocol (RSTP) support, Rate limit, Spanning Tree Protocol (STP) support, Store and forward, Strict Priority (SP), Type of Service (ToS), VLAN management, Web-based management, Weighted Round Robin (WRR)
Connectivity
Ports: 24
Port Quantity: 24
Port Type: 10/100/1000 (PoE+)
Ports (2nd) Quantity: 4
Ports Type (2nd): 1 Gigabit / 10 Gigabit SFP+
Interface Provided: 1 x serial (RS-232), 24 x 1000Base-T RJ-45 PoE+ - 30 W, 4 x 1/10GBase-X SFP+
Power Over Ethernet (PoE): PoE+
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
PoE Budget: 370 watt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 5 - 90% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 8.3 inch
Weight: 8.38 lbs
Certifications and Listing
Compliant Standards: EN 62368, FCC Class A certified, IEC 62368, NDAA, UL
Compliant Standards: IEEE 1588v2, IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, ITU-T G.8031, ITU-T G.8032
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
TAA Compliant: Yes
Warranty
Limited Warranty: 5 Year
Service & Support Details: Limited warranty - 5 years
Service Activation: No
