Product Information

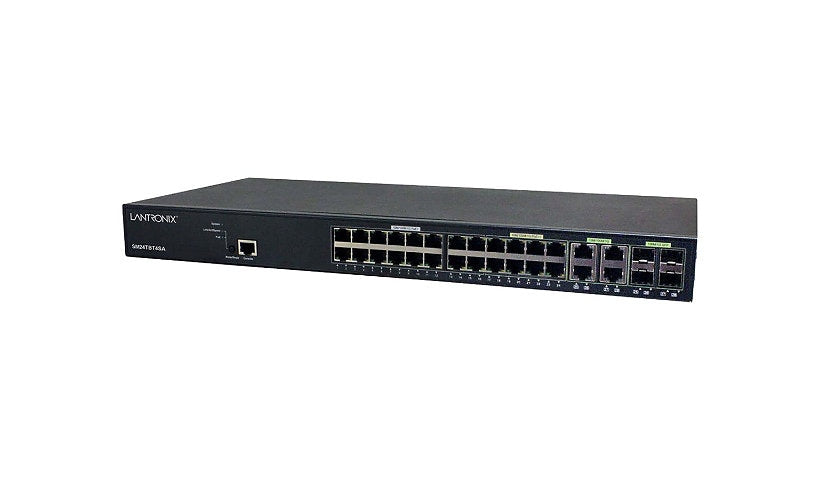

Lantronix's SM24TBT4SA is a managed switch with 24 Gigabit PoE++ ports at up to 90 W and four combo Gigabit RJ-45/SFP ports. It has a 740 W PoE budget with always on PoE and auto power reset, 56 Gbps of switching capacity and TAA compliance.
Key Features
- 24 x 10/100/1000 RJ-45 PoE++ ports, 90 W
- 4 x combo Gigabit RJ-45/SFP ports
- 740 W PoE budget
- Always on PoE, auto power reset
- 56 Gbps switching, 41.7 Mpps
- TAA compliant, desktop or rack mount
Product Information
Brand: Lantronix
Manufacturer: Lantronix
Product Line: Lantronix
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: HTTP, HTTPS, RADIUS, RMON, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3, TACACS+, Telnet, TFTP
Routing Protocol: IGMP, MLD, MLDv2, STP
Authentication Method: RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+
Encryption: SSL
Performance: Forwarding capacity: 41.7 Mpps, Switching capacity: 56 Gbps
Capacity: VLAN IDs: 4096
MAC Address Table Size: 8K entries
Jumbo Frame Support: 9216 bytes
Features: ACL support, Always on PoE, Auto Power Reset (APR), Command-line interface (CLI) management, Device Management System (DMS), DHCP relay, DHCP server, DHCP snooping, Dual image support, GARP VLAN Registration Protocol (GVRP), IGMP proxy, IGMP querier, IGMP snooping, Ingress rate limiting, IP source guard, IP subnet-based VLANs support, IPv6 management, Link Aggregation Control Protocol (LACP), LLDP support, Loop protection, MAC based VLAN, MDI/MDI-X switch, PoE scheduling, Port mirroring, Port Security, Port-based VLAN, Private VLAN Edge (PVE), Q-in-Q tunneling, Quality of Service (QoS), Storm Control, Syslog support, Tagged VLAN, Topology view, Traffic monitoring, VLAN management, Voice VLAN, Web GUI management portal, Web-based management, Weighted Round Robin (WRR)
Software Type: Percepxion IoT Edge Solutions Platform
Connectivity
Ports: 24
Port Quantity: 24
Port Type: 10/100/1000 (PoE++)
Ports (2nd) Quantity: 4
Ports Type (2nd): Combo Gigabit SFP
Interface Provided: 24 x 1000Base-T RJ-45 90 W, 4 x 1000Base-X RJ-45/SFP
Power Over Ethernet (PoE): PoE++
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
PoE Budget: 740 watt
Power Supplies Installed: 1
Technical Information
Min Operating Temperature: 14 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Min Storage Temperature: -4 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 10 - 90% (non-condensing)
MTBF: 152,962 Hours
Physical Characteristics
Form Factor (Hubs & Switches): Desktop, Rack-mountable
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 8.3 inch
Weight: 6.61 lbs
Certifications and Listing
Compliant Standards: FCC Class A certified, NDAA, UL
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
TAA Compliant: Yes
Warranty
Limited Warranty: 5 Year
Service & Support Details: Limited warranty - 5 years
Service Activation: No
