Product Information

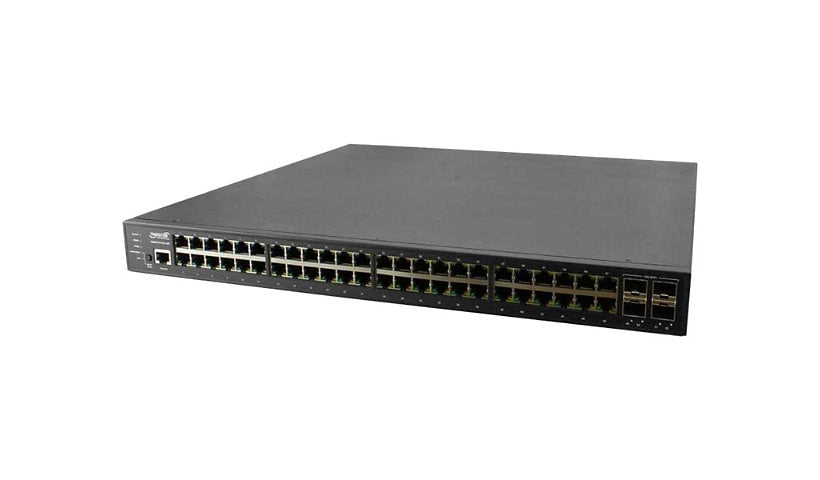

Lantronix's SM48TAT4XA-RP is a managed rack switch with 48 Gigabit PoE+ ports at up to 30 W and 10G SFP+ uplinks. It has a 1640 W PoE budget with always on PoE and auto power reset, 176 Gbps of backplane capacity and a hot-plug power supply with redundancy optional, and it is TAA compliant.
Key Features
- 48 x 10/100/1000 RJ-45 PoE+ ports, 30 W
- 10G SFP+ uplinks
- 1640 W PoE budget
- 176 Gbps backplane
- 1 hot-plug PSU, redundant optional
- TAA compliant, power cord included
Product Information
Brand: Lantronix
Manufacturer: Transition Networks
Product Line: Lantronix
Model: SM48TAT4XA-RP
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Country: North America
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, SNMP 1, SNMP 2c, SNMP 3, Telnet, TFTP, Web GUI
Routing Protocol: IGMP, IGMPv2, IGMPv3
Authentication Method: RADIUS, Secure Shell (SSH), TACACS+
Encryption: SSL
Performance: Backplane switching capacity: 176 Gbps
Capacity: Multicast groups: 1024, Queues: 8
MAC Address Table Size: 32K entries
Jumbo Frame Support: 10240 bytes
Features: Always on PoE, Auto Power Reset (APR), Carrier Sense Multiple Access with Collision Detection (CSMA/CD), Device Management System (DMS), DHCP relay, DHCP server, GARP VLAN Registration Protocol (GVRP), IGMP proxy, IGMP snooping, IP source guard, IPv4 and IPv6 dual stack, Loop detection, MAC based VLAN, MLD snooping, PoE scheduling, Port Security, Port trunking, Port-based VLAN, Private VLAN Edge (PVE), Static routing, Store-and-forward technology, Strict Priority (SP), VLAN management, Weighted Round Robin (WRR)
Connectivity
Ports: 48
Port Quantity: 48
Port Type: 10/100/1000 (PoE+)
Ports (2nd) Quantity: 2
Ports Type (2nd): 10Gb Ethernet SFP+
Interface Provided: 1 x console RJ-45, 2 x 1/10GBase-X SFP+, 48 x 1000Base-T RJ-45 30 W
Power Over Ethernet (PoE): PoE+
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
PoE Budget: 1640 watt
Power Supplies Installed: 1
Power Supplies Supported: 2
Redundant Power Supply: Optional
Hot-Plug: Hot-plug
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 5 - 90% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Rack Mounting Kit: Included
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 14.8 inch
Weight: 8.38 lbs
Included Items
Included Accessories: Power cord
Certifications and Listing
Compliant Standards: FCC Class A certified, NDAA, UL
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, ITU-T G.8031
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
TAA Compliant: Yes
Warranty
Limited Warranty: 5 Year
Service & Support Details: Limited warranty - 5 years
