Product Information

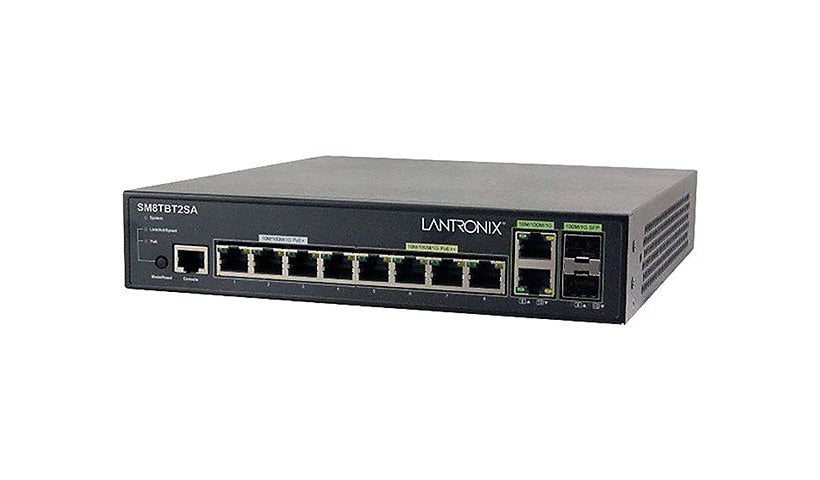

Lantronix's SM8TBT2SA-NA is a managed switch with eight Gigabit PoE++ ports and two 100/1000 SFP slots. It has a 240 W PoE budget, 20 Gbps of switching capacity, 6 kV surge protection and auto power reset for attached devices.
Key Features
- 8 x 10/100/1000 RJ-45 PoE++ ports
- 2 x 100/1000 SFP slots
- 240 W PoE budget
- 20 Gbps switching capacity
- 6 kV surge protection, auto power reset
- Rack mount
Product Information
Brand: Lantronix
Manufacturer: Transition Networks
Product Line: Lantronix SMTATSA Series
Model: SM8TBT2SA-NA
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Country: North America
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: HTTP, SNMP 1, SNMP 2c, SNMP 3, Telnet, TFTP
Routing Protocol: IGMP, IGMPv2, MLD, MLDv2
Authentication Method: RADIUS, TACACS+
Performance: Switching capacity: 20 Gbps
Capacity: MAC table size: 8000
MAC Address Table Size: 8K entries
Jumbo Frame Support: 9KB
Features: 6KV Surge protection, Auto Power Reset (APR), Carrier Sense Multiple Access with Collision Detection (CSMA/CD), Command-line interface (CLI) management, Device Management System (DMS), DHCP relay, DHCP server, DHCP snooping, Firmware upgradable, IGMP snooping, MAC based VLAN, MLD snooping, Multicast VLAN Registration (MVR), Per port bandwidth control, Port-based VLAN, Private VLAN, Q-in-Q tunneling, Store and forward, Strict Priority (SP), Syslog support, Topology view, Traffic monitoring, Web-based management, Weighted Round Robin (WRR)
Smart: Yes
Software Type: Percepxion IoT Edge Solutions Platform
Connectivity
Ports: 8
Port Quantity: 8
Port Type: 10/100/1000 (PoE++)
Ports (2nd) Quantity: 2
Ports Type (2nd): 100/1000 SFP
Interface Provided: 2 x 100 / 1000Base-X SFP, 8 x 1000Base-T RJ-45 PoE++
Power Over Ethernet (PoE): PoE++
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
PoE Budget: 240 watt
Technical Information
Min Operating Temperature: 14 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Min Storage Temperature: -4 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Status Indicators: Link/activity/speed, PoE, Port status, System
Rack Mounting Kit: Included
Dimensions and Weight
Height: 1.7 inch
Width: 8.7 inch
Depth: 9.5 inch
Weight: 4.41 lbs
Certifications and Listing
Compliant Standards: EN 62368, FCC Class A certified, IEC 62368, NDAA, NOM, UL
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: 5 Year
Service & Support Details: Limited warranty - 5 years
