Product Information

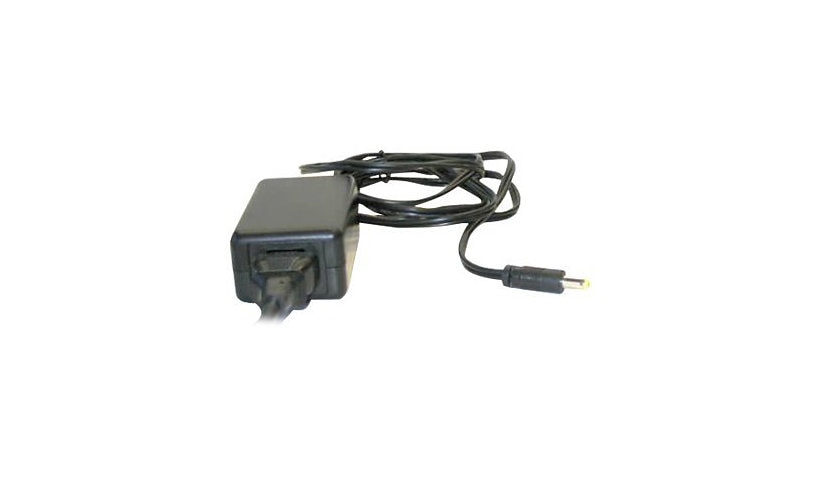

The Lantronix SPS-UA12DHT-NA is an 18W, 12V DC industrial power supply with 90 to 264V input, a C14 inlet, a 2.5 x 2.1 mm DC jack, a barrel to bare wire cable, overheat and overload protection and a 100,000 hour MTBF, for North America. TAA compliant. Backed by a limited lifetime warranty.
Key Features
- 18W, 12V DC
- 90 to 264V input
- Bare wire adapter
- 100,000 hr MTBF
- TAA compliant
- Limited lifetime warranty
Product Information
Brand: Lantronix
Manufacturer: Transition Networks
Product Line: Lantronix
Product Type: Power Adapter
Subcategory: Power adapters
Packaged Quantity: 1
Color Category: Black
Country: North America
Power
Required Voltage: AC 90 - 264 volt
Frequency: 50 - 60 hertz
Power Device Features: Full load burn in test, Overheat protection, Overload protection
Input Connector Type: Power IEC 60320 C14
Power Provided: 18 watt
Form Factor (Power Device): External
Input Connectors: 1
Output Connector Type: Power DC jack 2.5 mm (ID: 2.1 mm)
Max Input Current: 1.3 ampere
Voltage Provided Margin: + 5% / - 5%
Efficiency: 79.4%
Provided Voltage: DC 12 volt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 158 degree Fahrenheit
Operating Humidity: 10 - 95% (non-condensing)
MTBF: 100,000 Hours
Dimensions and Weight
Height: 1.5 inch
Width: 37.5 inch
Depth: 1.5 inch
Included Items
Cables: Barrel to bare wire adapter cable, DC power cable - integrated
Certifications and Listing
Compliant Standards: CISPR 22 Class B, cUL No.60950-1, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN55022, EN55024, FCC, GS, IEC 60068-2-6, J60950, NDAA, PSE Mark, RoHS, TUV, TUV EN60950-1, UL 60950-1
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
TAA Compliant: Yes
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
