Product Information

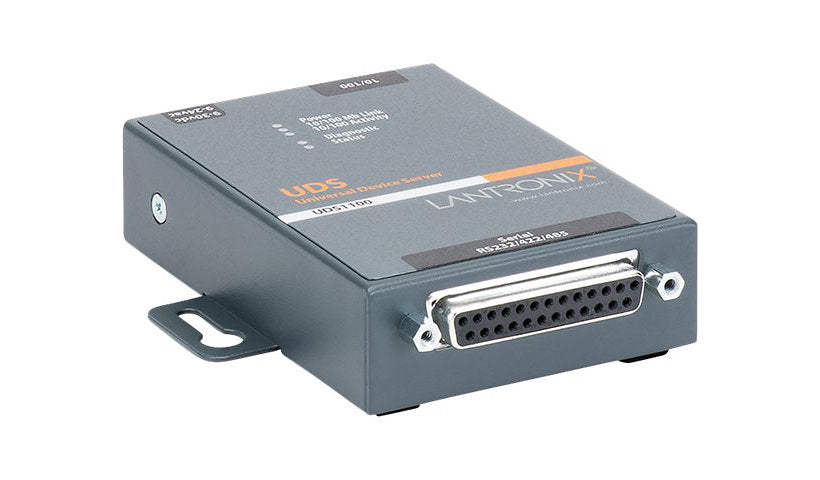

The Lantronix UDS1100 (UD1100001-01) is a single port device server for M2M communication, adding almost any serial device to an Ethernet network in minutes. It has one RS-232/422/485 serial port (a DB-25 per the quick specs) and one 10/100 RJ-45, is UL864 compliant and mounts on a wall or rail. It supports full or half duplex with flow control and is managed by web, Telnet and SNMP.
Key Features
- Single port device server
- RS-232/422/485, DB-25
- 10/100 Ethernet
- UL864 compliant
- Wall or rail mount
- M2M connectivity
Product Information
Brand: Lantronix
Manufacturer: Lantronix
Product Line: Lantronix Device Server UDS1100
Model: One Port Serial (RS232/ RS422/ RS485) to IP Ethernet, UL864
Product Type: Device server
Packaged Quantity: 1
Country: United States
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, RS-232, RS-422, RS-485
Network Standard: ICMP/IP, TCP/IP, UDP/IP
Remote Management: HTTP, SNMP, Telnet
Operating System Required: Microsoft Windows 98/ME/NT/2000/XP
Features: ARP support, DHCP support, Flow control, Full duplex mode, Half duplex mode
Software Type: Drivers & Utilities
Connectivity
Interface Provided: 1 x 100Base-TX - RJ-45, 1 x serial
Memory and Processor
Processors Installed: 1
Clock Speed: 48 megahertz
RAM Installed: 256 kilobyte
Memory Technology: SRAM
Flash Memory Installed: 2 megabyte
Total Processor Supported: 1
Optical Drive Type: None
Technical Information
Min Operating Temperature: 41 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Physical Characteristics
Form Factor: External
Status Indicators: Link/activity, Power, Status
Dimensions and Weight
Height: 0.9 inch
Width: 2.5 inch
Depth: 3.5 inch
Weight: 7.05 ounce
Certifications and Listing
Compliant Standards: C-Tick, CISPR 22 Class A, CSA, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN55022, EN55024, FCC, FCC Class A certified, FCC Part 15, FCC Part 15 B, ICES-003 Class A, RoHS, TUV, VCCI
