Product Information

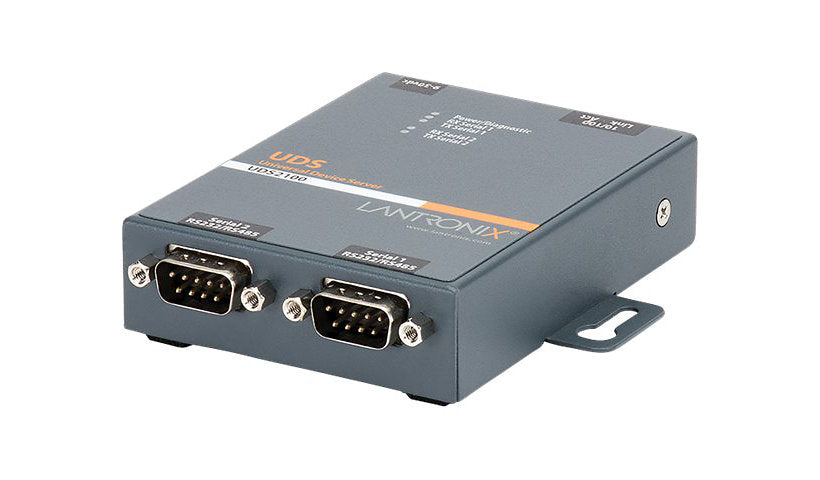

The Lantronix UDS2100 (UD2100001-01) is a 2 port device server that adds two serial devices of almost any type to an Ethernet network in minutes. It has two RS-232/422/485 DB-9 ports and one 10/100 RJ-45 port, works transparently with existing equipment and software, and supports full or half duplex with flow control. A 48 MHz processor with 2 MB flash runs it, managed by web, Telnet and SNMP. It mounts on a wall or rail and uses an external power adapter.
Key Features
- 2 serial ports, DB-9
- RS-232, RS-422, RS-485
- 10/100 Ethernet
- Wall or rail mount
- Web, Telnet, SNMP
- Quick setup
Product Information
Brand: Lantronix
Manufacturer: Lantronix
Product Line: Lantronix Device Server UDS2100
Model: Two Port Serial (RS232/ RS422/ RS485) to IP Ethernet
Product Type: Device server
Packaged Quantity: 1
Country: United States
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, RS-232, RS-422, RS-485
Network Standard: ICMP/IP, TCP/IP, UDP/IP
Remote Management: HTTP, SNMP, Telnet
Operating System Required: Microsoft Windows 98/ME/NT/2000/XP
Features: ARP support, DHCP support, Flow control, Full duplex mode, Half duplex mode, Manageable
Software Type: Drivers & Utilities
Connectivity
Ports: 2
Interface Provided: 1 x 100Base-TX - RJ-45, 2 x RS-232/422/485 - DB-9
Power
Device Type: External power adapter
Memory and Processor
Processors Installed: 1
Clock Speed: 48 megahertz
RAM Installed: 256 kilobyte
Memory Technology: SRAM
Flash Memory Installed: 2 megabyte
Total Processor Supported: 1
Optical Drive Type: None
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Physical Characteristics
Form Factor: External
Status Indicators: Link/activity, Port duplex mode, Power, Status
Dimensions and Weight
Height: 0.9 inch
Width: 2.8 inch
Depth: 3.7 inch
Weight: 14.11 ounce
Certifications and Listing
Compliant Standards: CISPR 22 Class A, CSA, cUL, EN 61000-3-2, EN 61000-3-3, EN55022 Class A, FCC Class A certified, FCC Class B certified, ICES-003 Class A, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, RoHS, TUV, UL, VCCI, WEEE
