Product Information

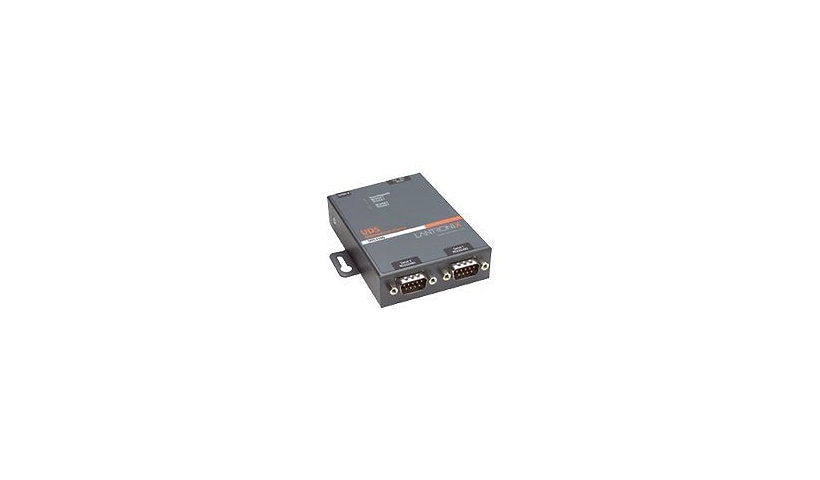

The Lantronix UDS2100 (UD2100002-01) is a 2 port device server that brings two serial devices onto an Ethernet network in minutes for remote management. It has two RS-232/422/485 DB-9 ports and one 10/100 RJ-45, mounts on a wall or rail and supports full or half duplex with flow control. This version comes with an international power supply and regional adapters. It is managed by web, Telnet and SNMP.
Key Features
- 2 serial ports, DB-9
- RS-232, RS-422, RS-485
- 10/100 Ethernet
- International power supply
- Regional plug adapters
- Wall or rail mount
Product Information
Brand: Lantronix
Manufacturer: Lantronix
Product Line: Lantronix Device Server UDS2100
Model: Two Port Serial (RS232/ RS422/ RS485) to IP Ethernet
Product Type: Device server
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, RS-232, RS-422, RS-485
Network Standard: ICMP/IP, TCP/IP, UDP/IP
Remote Management: HTTP, SNMP, Telnet
Operating System Required: Microsoft Windows 98/ME/NT/2000/XP
Features: ARP support, DHCP support, Flow control, Full duplex mode, Half duplex mode, Manageable
Software Type: Drivers & Utilities
Connectivity
Ports: 2
Interface Provided: 1 x 100Base-TX - RJ-45, 2 x RS-232/422/485 - DB-9
Power
Device Type: External power adapter
Memory and Processor
Processors Installed: 1
Clock Speed: 48 megahertz
RAM Installed: 256 kilobyte
Memory Technology: SRAM
Flash Memory Installed: 2 megabyte
Total Processor Supported: 1
Optical Drive Type: None
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Physical Characteristics
Form Factor: External
Status Indicators: Link/activity, Port duplex mode, Power, Status
Dimensions and Weight
Height: 0.9 inch
Width: 2.8 inch
Depth: 3.7 inch
Weight: 14.11 ounce
Certifications and Listing
Compliant Standards: CISPR 22 Class A, CSA, cUL, EN 61000-3-2, EN 61000-3-3, EN55022 Class A, FCC Class A certified, FCC Class B certified, ICES-003 Class A, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, RoHS, TUV, UL, VCCI, WEEE
