Product Information

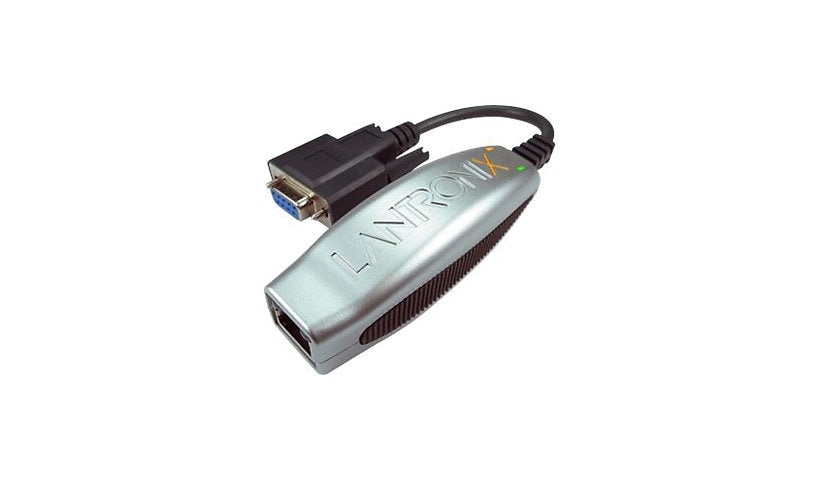

The Lantronix xDirect IAP (XDT10P0IA-01-S) is a small single port serial to Ethernet server that supports Modbus for industrial automation gear. It has one RS-232/422/485 DB-9 with auto sensing at up to 115.2 Kbps and one 10/100 RJ-45 port with PoE, plus 15 kV ESD protection. It handles ASCII and Modbus, is managed by web, Telnet, SNMP and TFTP, draws about 2 W and comes with Com Port Redirector and DeviceInstaller software.
Key Features
- 1 port serial to Ethernet
- RS-232/422/485 DB-9
- PoE powered
- Modbus support
- 15 kV ESD protection
- Web, Telnet, SNMP
Product Information
Brand: Lantronix
Manufacturer: Lantronix
Product Line: Lantronix xDirect IAP
Model: Compact 1-Port Secure Serial (RS232/ RS422/ RS485) to IP Ethernet with Power Over Ethernet (PoE)
Product Type: Device server
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: ASCII, Ethernet, Fast Ethernet, Modbus, RS-232, RS-422, RS-485
Network Standard: ARP, BOOTP, DHCP, ICMP/IP, TCP/IP, UDP/IP
Remote Management: HTTP, SNMP, Telnet, TFTP
Data Transfer Rate: 115.2 Kbps
Operating System Required: Microsoft Windows 7 (32/64 bits), Microsoft Windows Server 2003 (32/64-bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Vista (32/64 bits), Microsoft Windows XP (32/64 bits)
Features: 15 KV Electrostatic Discharge Protection, Auto-sensing per device, Flow control
Software Type: Drivers & Utilities, Lantronix Com Port Redirector, Lantronix DeviceInstaller
Connectivity
Interface Provided: 1 x 100Base-TX (PoE) - RJ-45, 1 x RS-232/422/485 - DB-9
Power Over Ethernet (PoE): PoE
Power
Power Consumption Operational: 2 watt
Memory and Processor
Processors Installed: 1
RAM Installed: 256 kilobyte
Memory Technology: SRAM
Flash Memory Installed: 1 megabyte
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 158 degree Fahrenheit
Operating Humidity: 0 - 90% (non-condensing)
Physical Characteristics
Form Factor: External
Status Indicators: Link/activity, Power, Serial, Status
Dimensions and Weight
Height: 1.1 inch
Width: 1.3 inch
Depth: 9.4 inch
Weight: 2.4 ounce
Certifications and Listing
Compliant Standards #2: AS/NZS CISPR 22, C-Tick, CAN/CSA C22.2 No. 60950-1-07, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN55022 Class B, EN55024, IEC 60950-1 Second Edition, RoHS, UL 60950-1 Second Edition, VCCI
Compliant Standards: IEEE 802.3af
Compliant Standards: AS/NZS CISPR 22, C-Tick, CAN/CSA C22.2 No. 60950-1-07, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN55022 Class B, EN55024, IEC 60950-1 Second Edition, RoHS, UL 60950-1 Second Edition, VCCI
