Product Information

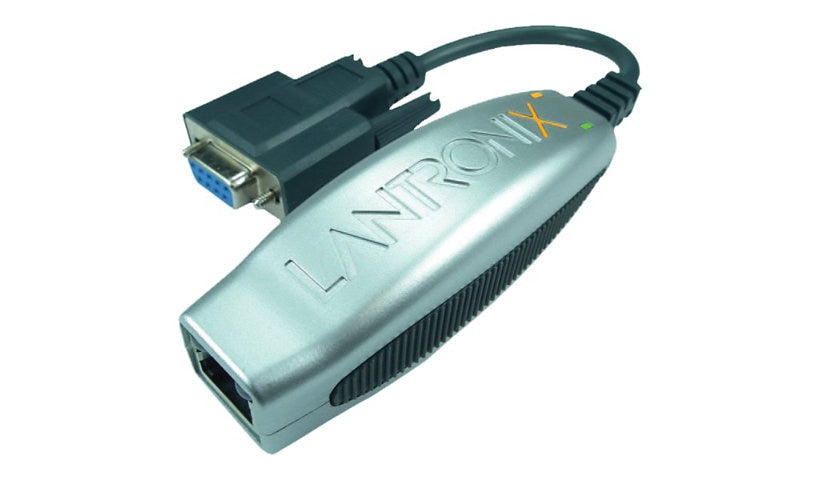

The Lantronix xDirect (XDT4851002-01-S) is a compact 1 port serial to Ethernet device server for nearly any machine with a serial interface. It has one RS-232/422/485 DB-9 with auto sensing and up to 921.6 Kbps, one 10/100 RJ-45 port, 15 kV ESD protection and AES encryption up to 256-bit. A built-in web server lets you set it up from a PC, phone or tablet, and it includes Com Port Redirector and DeviceInstaller software. It draws about 1.3 W from an external adapter. The description mentions PoE power options, which the spec does not list for this model.
Key Features
- 1 port serial to Ethernet
- RS-232/422/485 DB-9
- Up to 921.6 Kbps
- AES up to 256-bit
- Built-in web setup
- Com Port Redirector
Product Information
Brand: Lantronix
Manufacturer: Lantronix
Product Line: Lantronix xDirect
Model: Compact 1-Port Secure Serial (RS232/ RS422/ RS485) to IP Ethernet
Product Type: Device server
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, RS-232, RS-422, RS-485
Network Standard: ARP, BOOTP, DHCP, ICMP/IP, TCP/IP, UDP/IP
Remote Management: HTTP, SNMP, Telnet, TFTP
Encryption: 128-bit AES, 192-bit AES, 256-bit AES
Data Transfer Rate: 921.6 Kbps
Operating System Required: Microsoft Windows 7 (32/64 bits), Microsoft Windows Server 2003 (32/64-bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Vista (32/64 bits), Microsoft Windows XP (32/64 bits)
Features: 15 KV Electrostatic Discharge Protection, Auto-sensing per device, DHCP support, Flow control
Software Type: Drivers & Utilities, Lantronix Com Port Redirector, Lantronix DeviceInstaller
Connectivity
Interface Provided: 1 x 100Base-TX - RJ-45, 1 x RS-232/422/485 - DB-9
Power
Device Type: External power adapter
Power Consumption Operational: 1.3 watt
Memory and Processor
Processors Installed: 1
RAM Installed: 256 kilobyte
Memory Technology: SRAM
Flash Memory Installed: 1 megabyte
Total Processor Supported: 1
Physical Characteristics
Form Factor: External
Status Indicators: Link/activity, Power, Serial, Status
Dimensions and Weight
Height: 1.1 inch
Width: 1.3 inch
Depth: 9.4 inch
Weight: 2.4 ounce
Certifications and Listing
Compliant Standards: C-Tick, CISPR 22, CSA C22.2 No. 60950-1-07 Second Edition, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN55022 Class B, EN55024, FCC Part 15 B, IEC 60950-1 Second Edition, RoHS, UL 60950-1 Second Edition, VCCI
