Product Information

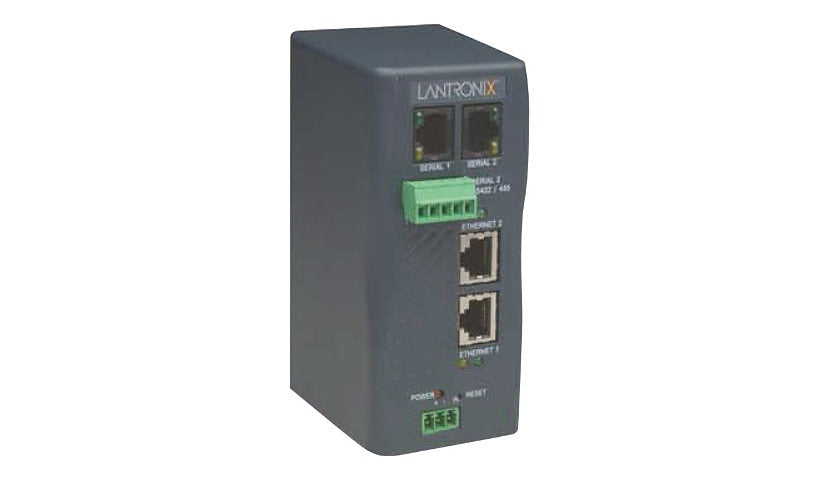

The Lantronix XPress-DR+ (XSDR22000-01) is an industrial device server for remotely configuring, monitoring and controlling PLCs, drives, motion controllers, power gear and barcode scanners in factories, distribution centers and refineries. It has two serial ports for RS-232, RS-422 or RS-485 and dual switched 10/100 Ethernet ports, and supports industrial protocols. A 48 MHz processor with 2 MB flash runs it, managed by web, Telnet and SNMP.
Key Features
- Industrial device server
- 2 serial ports
- RS-232, RS-422, RS-485
- Dual switched Ethernet
- Industrial protocols
- Web, Telnet, SNMP
Product Information
Brand: Lantronix
Manufacturer: Lantronix
Product Line: Lantronix Industrial Device Server
Model: XPress DR+
Product Type: Device server
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, RS-232, RS-422, RS-485
Network Standard: ICMP/IP, TCP/IP, UDP/IP
Remote Management: HTTP, SNMP, Telnet
Features: ARP support, BOOTP support, DHCP support, Flow control
Software Type: Drivers & Utilities
Connectivity
Ports: 2
Interface Provided: 1 x serial, 2 x 100Base-TX - RJ-45, 2 x serial
Memory and Processor
Flash Memory Size: 2 megabyte
Clock Speed: 48 megahertz
RAM Installed: 256 kilobyte
Memory Technology: SRAM
Flash Memory Installed: 2 megabyte
Optical Drive Type: None
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 158 degree Fahrenheit
Operating Humidity: 20 - 90%
Physical Characteristics
Form Factor: External
Status Indicators: Link/activity, Receive, Transmit
Dimensions and Weight
Height: 4.8 inch
Width: 2.2 inch
Depth: 3.5 inch
Weight: 7.41 ounce
Certifications and Listing
Compliant Standards #2: C-Tick, CSA, cUL, FCC Class B certified, RoHS, TUV, UL
Compliant Standards: IEEE 802.1D, IEEE 802.3x
Compliant Standards: C-Tick, CSA, cUL, FCC Class B certified, RoHS, TUV, UL
