Product Information

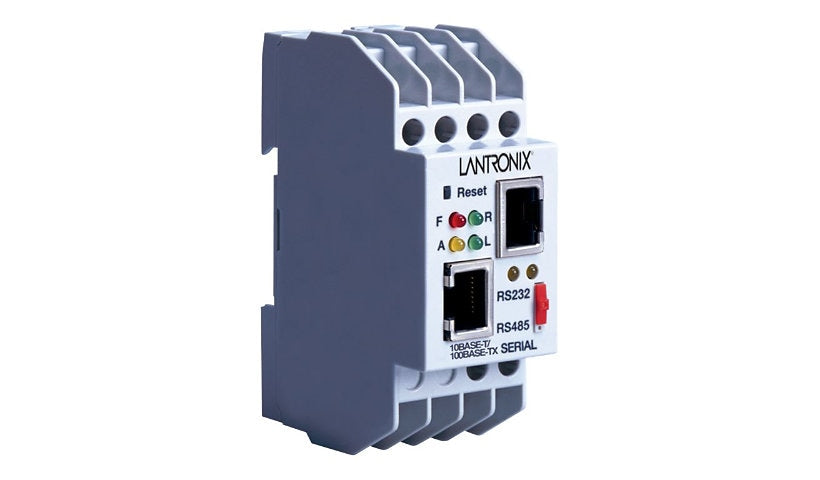

The Lantronix XPress DR (XSDRSN-03) is an industrial device server in a rugged DIN rail case that extends serial links over Ethernet across a plant or enterprise. It has one RS-232/422/485 RJ-45 port, one RS-232/422/485 screw terminal block and one 10/100 RJ-45, with 2 kV port to port isolation and flow control. It runs on 9 to 30 V DC or AC at about 3 W and is managed by web, Telnet, SNMP and TFTP with DeviceInstaller.
Key Features
- Industrial device server
- RJ-45 and terminal block
- RS-232/422/485 serial
- 2 kV isolation
- DIN rail mount
- 9 to 30 V power
Product Information
Brand: Lantronix
Manufacturer: Lantronix
Product Line: Lantronix Industrial Device Server
Model: XPress DR
Product Type: Device server
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, RS-232, RS-422, RS-485
Network Standard: ARP, BOOTP, DHCP, ICMP/IP, TCP/IP, UDP/IP
Remote Management: HTTP, SNMP, Telnet, TFTP
Operating System Required: Microsoft Windows
Features: 2 kV Port to Port Isolation, Flow control
Software Type: Lantronix DeviceInstaller
Connectivity
Interface Provided: 1 x 100Base-TX - RJ-45, 1 x RS-232/422/485 - RJ-45, 1 x RS-232/422/485 - terminal block (screw)
Power
Power Consumption Operational: 3 watt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 20 - 90% (non-condensing)
Physical Characteristics
Form Factor: DIN Rail Mountable
Status Indicators: Active, Fail, Link OK, Ready, Receive, Transmit
Dimensions and Weight
Height: 1.4 inch
Width: 3.5 inch
Depth: 2.4 inch
Certifications and Listing
Compliant Standards: CSA, ErP, RCM, RoHS, UL Class I Division 2, VCCI
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - 1 year
