Product Information

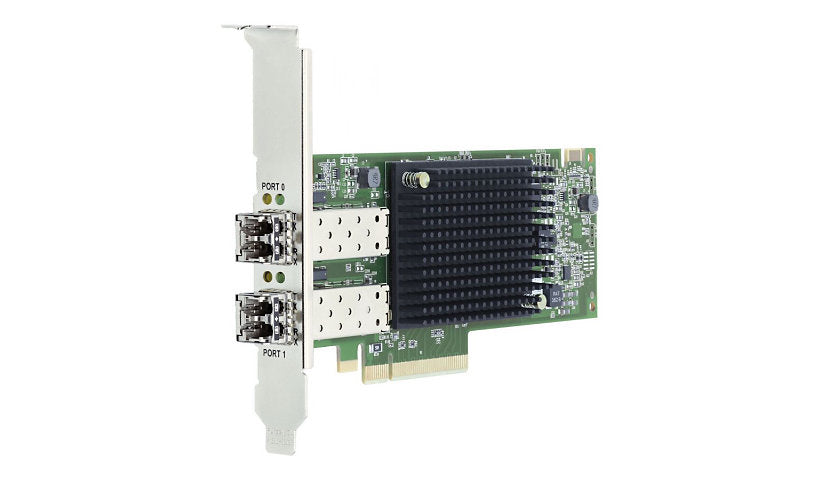

The Lenovo Emulex LPe37102 (4XC7A96457) is a dual port 32Gb Fibre Channel secure host bus adapter on a PCIe 4.0 x8 interface. It supports AES encryption, secure boot, SPDM attestation and N-Port ID Virtualization (NPIV) for enterprise SAN connectivity.
Key Features
- 2 x 32Gb Fibre Channel ports
- Secure HBA
- PCIe 4.0 x8
- AES encryption
- Secure boot and SPDM
- NPIV support
Product Information
Brand: Lenovo
Manufacturer: Lenovo ESG Server Options
Product Line: Emulex
Model: LPe37102
Product Type: Secure host bus adapter
Packaged Quantity: 1
Color Category: Green, Silver
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 32Gb Fibre Channel
Cable Type: Fibre Channel
Features: AES encryption, N-Port ID Virtualization (NPIV) technology, Secure Boot, Security Protocols and Data Models (SPDM)
Connectivity
PCI Specification Revision: PCIe 4.0
Port Quantity: 2
Interface Provided: 2 x 32Gb Fibre Channel
Network & Adapter Ports: 32Gb Fibre Channel
Host Interface: PCI Express 4.0 x8
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 5 - 95% RH (non-condensing)
Physical Characteristics
Form Factor: Plug-In Card
Dimensions and Weight
Height: 2.7 inch
Depth: 6.6 inch
Certifications and Listing
Compliant Standards: ANSI, BSMI Class A, China RoHS, CSA, EU Low Voltage Directive, EU RoHS, FCC, ICES Class A, KCC Class A, RCM Class A, Taiwan BSMI RoHS, UEFI 2.7, UKCA, UL, VCCI Class A
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - 1 year
Not sure this host bus adapter fits your system? Send us your server, storage or SAN switch model and the DatorPro team will confirm compatibility before you order.
