Product Information

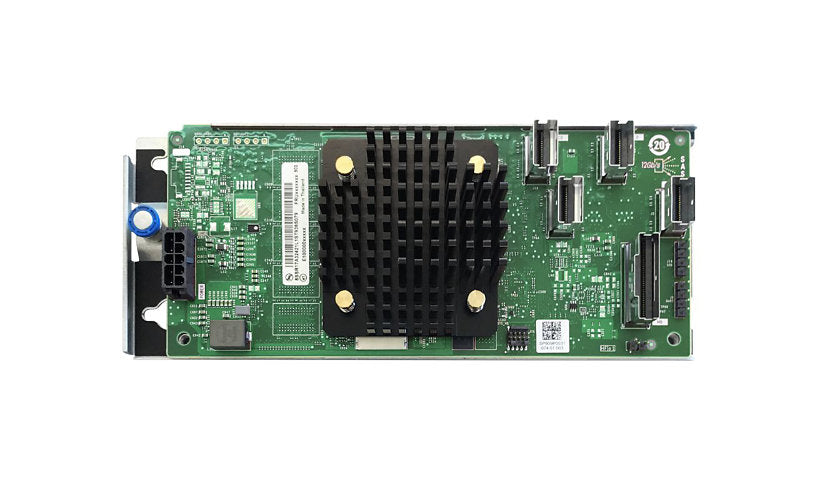

The Lenovo ThinkSystem 440-16i (4Y37A09725) is a 16 channel PCIe 4.0 x8 host bus adapter for internal SAS and SATA drives in ThinkSystem servers, built on the Broadcom SAS3816 controller. It uses a compact custom form factor that connects by cable to the server's built in PCIe 4.0 x8 connector instead of taking a standard slot, with SlimSAS (SFF-8654) connectors for up to 16 drives. Listed features include JBOD, self encrypting drive support and S.M.A.R.T., and it works with Windows Server 2016 and 2019, Red Hat and SUSE. The listing names ThinkAgile MX3530-H and MX3531-H systems.
Key Features
- 16 channel SAS/SATA HBA
- Broadcom SAS3816
- PCIe 4.0 x8, cabled
- Up to 16 drives
- SlimSAS SFF-8654
- For ThinkSystem servers
Product Information
Brand: Lenovo
Manufacturer: Lenovo Storage
Product Line: Lenovo ThinkSystem
Model: 440-16i
Product Type: Storage controller
Packaged Quantity: 1
Color Category: Green
Network and Communication
Data Transfer Rate: 12 Gbit/s
Operating System Required: Microsoft Windows Server 2016, Microsoft Windows Server 2019, Red Hat Enterprise Linux 7.7, Red Hat Enterprise Linux 7.8, Red Hat Enterprise Linux 7.9, Red Hat Enterprise Linux 8.1, Red Hat Enterprise Linux 8.2, SUSE Linux Enterprise Server 12 SP5, SUSE Linux Enterprise Server 12 SP5 with Xen, SUSE Linux Enterprise Server 15 SP1, SUSE Linux Enterprise Server 15 SP1 with Xen, SUSE Linux Enterprise Server 15 SP2, SUSE Linux Enterprise Server 15 SP2 with Xen, VMware vSphere Hypervisor 6.7 (ESXi) Update 3, VMware vSphere Hypervisor 7.0 (ESXi), VMware vSphere Hypervisor 7.0 (ESXi) Update 1
Features: CacheCade, Disk Data Format (DDF) support, FastPath, JBOD support, S.M.A.R.T. support, Self-Encrypting Drive (SED) support
Connectivity
Channel Quantity: 16
Controller Interface: SATA 6Gb/s / SAS 12Gb/s
Host Bus Interface: PCIe 4.0 x8
Interface Provided: 1 x SAS 12Gb/s - 1x8 Slim SAS (SFF-8654) (internal), 4 x SAS 12Gb/s - 4i Slim SAS (internal)
Memory and Processor
Form Factor (Storage Controller): Internal
Max Storage Devices: 16
Processor Brand: Broadcom
Processor Type: SAS3816
Technical Information
Min Operating Temperature: 50 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 20 - 80% (non-condensing)
Physical Characteristics
Supported Devices: Hard Drive, Solid State Drive
Certifications and Listing
Compliant Standards: AS/NZS CISPR 22, CNS 13438, EN55022, EN55024, FCC Part 15 B, ICES-003 Class B, IEC/EN/UL 60950, RoHS, VCCI V-3, WEEE
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - 1 year
