Product Information

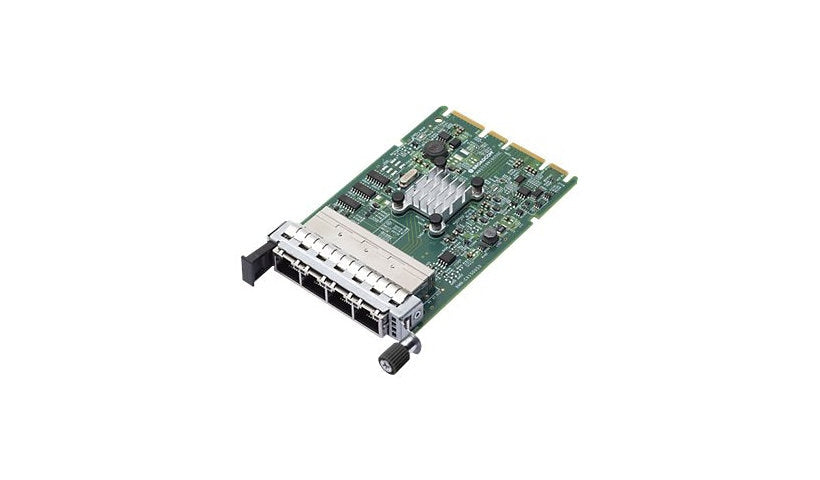

The Lenovo ThinkSystem Broadcom 5719 adapter (4XC7A08235) is a quad port Gigabit Ethernet card in the OCP form factor. Its four RJ-45 ports run at 10, 100 or 1000 Mbps and support jumbo frames up to 9,600 bytes and Wake on LAN, which suits virtualized servers on an existing Gigabit network. Listed systems include ThinkSystem SR630 V3 and SR650 V3 servers and ThinkAgile VX appliances. The description mentions a PCIe 2.0 x4 interface while the spec lists OCP, so please confirm the form factor.
Key Features
- 4 x 1GbE RJ-45 ports
- Broadcom BCM5719
- OCP form factor
- Jumbo frames to 9,600 bytes
- Wake on LAN
- For SR630 V3 and SR650 V3
Product Information
Brand: Lenovo
Manufacturer: Lenovo System X
Product Line: Lenovo ThinkSystem
Model: Broadcom 5719
Product Type: Network adapter
Compatibility Specs: Lenovo ThinkAgile VX2330 Appliance 7Z62 ¦ Lenovo ThinkAgile VX3330 Appliance 7Z62 ¦ Lenovo ThinkAgile VX3331 7Z62 ¦ Lenovo ThinkAgile VX3530-G Appliance 7Z63 ¦ Lenovo ThinkAgile VX3575-G Integrated System 7D43 ¦ Lenovo ThinkAgile VX5530 Appliance 7Z63 ¦ Lenovo ThinkAgile VX5575 Integrated System 7D43 ¦ Lenovo ThinkAgile VX7330-N Appliance 7Z62 ¦ Lenovo ThinkAgile VX7530 Appliance 7Z63 ¦ Lenovo ThinkAgile VX7531 Certified Node 7Z63 ¦ Lenovo ThinkAgile VX7575 Integrated System 7D43 ¦ Lenovo ThinkAgile VX7576 Certified Node 7D43 ¦ Lenovo ThinkSystem SR630 V2 7Z71 ¦ Lenovo ThinkSystem SR630 V3 ¦ Lenovo ThinkSystem SR635 7Y99 ¦ Lenovo ThinkSystem SR645 7D2X ¦ Lenovo ThinkSystem SR650 V2 7D15, 7Z73 ¦ Lenovo ThinkSystem SR650 V3 ¦ Lenovo ThinkSystem SR655 7Z01 ¦ Lenovo ThinkSystem SR665 7D2V, 7D2W ¦ Lenovo ThinkSystem SR670 V2 7Z23 ¦ Lenovo ThinkSystem SR850 V2 7D32
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Network Standard: TCP/IP
Cable Type: Ethernet 1000Base-T, Ethernet 100Base-TX, Ethernet 10Base-T
Data Transfer Rate: 1 GBps
Features: Jumbo Frames support (up to 9600 bytes), Wake On LAN (WOL)
Connectivity
Port Quantity: 4
Interface Provided: 4 x 1000Base-T - RJ-45
Network & Adapter Ports: 10/100/1000
Host Interface: Open Compute Project mezzanine (OCP)
Memory and Processor
Processor Brand: Broadcom
Processor Number: BCM5719
Processors Installed: 1
Technical Information
Min Operating Temperature: 50 degree Fahrenheit
Max Operating Temperature: 95 degree Fahrenheit
Operating Humidity: 20 - 80% (non-condensing)
Dimensions and Weight
Height: 3 inch
Depth: 4.5 inch
Certifications and Listing
Compliant Standards #2: AS/NZS CISPR 22, BSMI, CSA C22.2 950-95, EN 60950, EN 61000-3-2, EN 61000-3-3, EN55022, EN55024, FCC CFR47 Part 15 A, ICES-003 issue 4, IEC 950, IEEE 802.1Q, RoHS, RRL, UL 1950, VCCI
Compliant Standards: IEEE 802.1ad, IEEE 802.1Q, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z
Compliant Standards: AS/NZS CISPR 22, BSMI, CSA C22.2 950-95, EN 60950, EN 61000-3-2, EN 61000-3-3, EN55022, EN55024, FCC CFR47 Part 15 A, ICES-003 issue 4, IEC 950, IEEE 802.1Q, RoHS, RRL, UL 1950, VCCI
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - 1 year
Service Activation: No
