Product Information

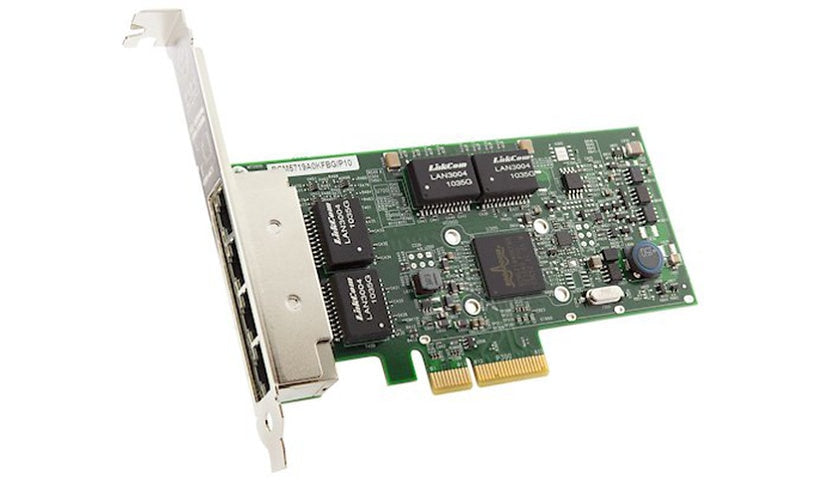

The Lenovo ThinkSystem NetXtreme by Broadcom adapter (7ZT7A00484) is a quad port Gigabit Ethernet card on a low profile PCIe 2.0 x4 interface, built on the BCM5719 controller. Its RJ-45 ports support iSCSI and PXE boot, teaming, RSS and TSS, checksum offload and jumbo frames up to 9,600 bytes, and both brackets are included. Listed systems include ThinkSystem SR250 V2, SR630 V3, SR650 V3, ST250 V2, ST50 V2 and ST50 V3 and ThinkAgile VX appliances. The description mentions two ports, but the spec lists four.
Key Features
- 4 x 1GbE RJ-45 ports
- Broadcom BCM5719
- PCIe 2.0 x4
- iSCSI and PXE boot
- Jumbo frames to 9,600 bytes
- Low profile, both brackets
Product Information
Brand: Lenovo
Manufacturer: Lenovo ESG Server Options
Product Line: Lenovo ThinkSystem
Model: NetXtreme By Broadcom
Product Type: Network adapter
Compatibility Specs: Lenovo ThinkAgile VX Certified Node 7Y94, 7Z12 ¦ Lenovo ThinkAgile VX2330 Appliance 7Z62 ¦ Lenovo ThinkAgile VX3330 Appliance 7Z62 ¦ Lenovo ThinkAgile VX3331 7Z62 ¦ Lenovo ThinkAgile VX3530-G Appliance 7Z63 ¦ Lenovo ThinkAgile VX3575-G Integrated System 7D43 ¦ Lenovo ThinkAgile VX5530 Appliance 7Z63 ¦ Lenovo ThinkAgile VX5575 Integrated System 7D43 ¦ Lenovo ThinkAgile VX7330-N Appliance 7Z62 ¦ Lenovo ThinkAgile VX7530 Appliance 7Z63 ¦ Lenovo ThinkAgile VX7575 Integrated System 7D43 ¦ Lenovo ThinkAgile VX7576 Certified Node 7D43 ¦ Lenovo ThinkAgile VX7820 Appliance 7Z13 ¦ Lenovo ThinkSystem SE350 7Z46 ¦ Lenovo ThinkSystem SR250 ¦ Lenovo ThinkSystem SR250 V2 7D7Q ¦ Lenovo ThinkSystem SR530 ¦ Lenovo ThinkSystem SR550 ¦ Lenovo ThinkSystem SR570 ¦ Lenovo ThinkSystem SR590 ¦ Lenovo ThinkSystem SR630 ¦ Lenovo ThinkSystem SR630 V2 7Z71 ¦ Lenovo ThinkSystem SR630 V3 ¦ Lenovo ThinkSystem SR645 7D2X ¦ Lenovo ThinkSystem SR650 ¦ Lenovo ThinkSystem SR650 V2 7D15, 7Z73 ¦ Lenovo ThinkSystem SR650 V3 ¦ Lenovo ThinkSystem SR665 7D2V, 7D2W ¦ Lenovo ThinkSystem SR670 V2 7Z23 ¦ Lenovo ThinkSystem SR850 ¦ Lenovo ThinkSystem SR950 ¦ Lenovo ThinkSystem ST250 ¦ Lenovo ThinkSystem ST250 V2 7D8F ¦ Lenovo ThinkSystem ST50 ¦ Lenovo ThinkSystem ST50 V2 7D8J ¦ Lenovo ThinkSystem ST50 V3 ¦ Lenovo ThinkSystem ST550 ¦ Lenovo ThinkSystem ST650 V2 7Z74, 7Z75
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Gigabit Ethernet
Capacity: Jumbo frame size: 9600
Features: Extended Message-Signaled Interrupts (MSI-X), Flow control, iSCSI boot, Jumbo Frames support, Message Signaled Interrupts (MSI), PXE support, Receive Side Scaling (RSS), TCP/IP checksum offload, Teaming support, Transmit Side Scaling (TSS), UDP/IP checksum offload
Connectivity
Port Quantity: 4
Interface Provided: 4 x network - RJ-45
Network & Adapter Ports: Gigabit Ethernet
Host Interface: PCI Express 2.0 x4
Memory and Processor
Processor Brand: Broadcom
Processor Number: BCM5719
Processors Installed: 1
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 20 - 80% (non-condensing)
Physical Characteristics
Form Factor: Plug-In Card
Low Profile: Low profile
Dimensions and Weight
Height: 2.7 inch
Width: 0.7 inch
Depth: 5.2 inch
Included Items
Included Accessories: Full-height bracket, Low-profile bracket
Certifications and Listing
Compliant Standards: IEEE 802.1Q, IEEE 802.3x
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - 1 year
Service Activation: No
