Product Information

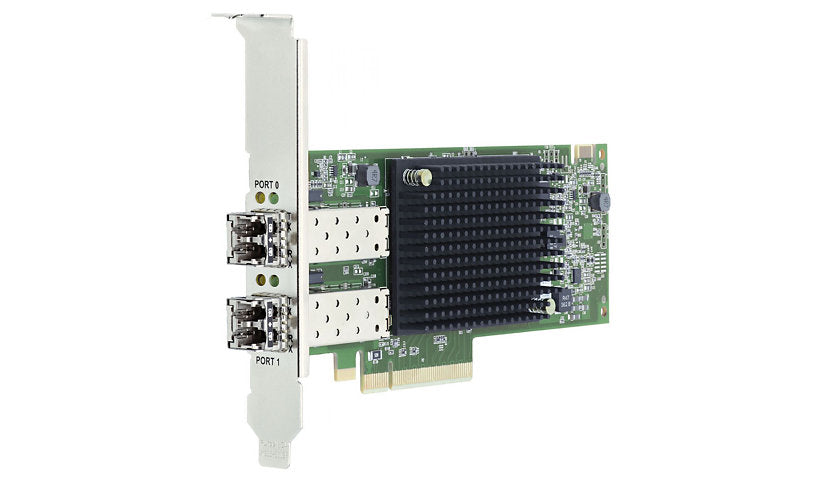

The Lenovo ThinkSystem Emulex LPe32002 V2 (4XC7A76525) is a dual port 32Gb Gen 7 Fibre Channel host bus adapter, used for storage area networks rather than Ethernet. It has two short wave SFP+ ports on a low profile PCIe 4.0 x8 interface, supports FC-NVMe for low latency flash storage, and includes full height and low profile brackets. Listed systems include ThinkSystem SR630 V2, SR635, SR645, SR650 V2, SR655, SR665 and ST650 V2. The description refers to the LPe35000 family, so please confirm the model.
Key Features
- Fibre Channel HBA, not Ethernet
- 2 x 32G FC short wave
- PCIe 4.0 x8
- FC-NVMe support
- For ThinkSystem servers
- Low profile, both brackets
Product Information
Brand: Emulex
Manufacturer: Lenovo System X
Product Line: Lenovo ThinkSystem
Model: Emulex LPe32002 V2
Product Type: Host bus adapter
Compatibility Specs: Lenovo ThinkSystem SR630 V2 7Z70, 7Z71 ¦ Lenovo ThinkSystem SR635 7Y98, 7Y99 ¦ Lenovo ThinkSystem SR645 7D2X, 7D2Y ¦ Lenovo ThinkSystem SR650 V2 7D15, 7Z72, 7Z73 ¦ Lenovo ThinkSystem SR655 7Y00, 7Z01 ¦ Lenovo ThinkSystem SR665 7D2V, 7D2W ¦ Lenovo ThinkSystem ST650 V2 7Z74, 7Z75
Packaged Quantity: 1
Network and Communication
Fibre Channel: FC-DA, FC-DA-2, FC-FS, FC-FS-3, FC-FS-4, FC-FS-5, FC-GS-2, FC-GS-3, FC-GS-4, FC-GS-5, FC-GS-6, FC-GS-7, FC-LS-2, FC-LS-3, FC-MI, FC-NVMe, FC-PH, FC-PH-2, FC-PH-3, FC-PI, FC-PI-2, FC-PI-3, FC-PI-4, FC-PI-5, FC-PI-6, FC-PI-7, FC-Tape, FCP-2, FCP-3, FCP-4, SBC-3, SPC-3, SPC-4, SSC-2, SSC-3, SSC-4
Connectivity Technology: Wired
Data Link Protocols: 32Gb Fibre Channel Gen 7 (Short Wave)
Cable Type: Fibre Channel
Data Transfer Rate: 28.05 GBps
Operating System Required: Microsoft Windows Server 2016, Microsoft Windows Server 2019, Red Hat Enterprise Linux 8.3, SUSE Linux Enterprise Server 12 SP5, SUSE Linux Enterprise Server 12 SP5 with Xen, SUSE Linux Enterprise Server 15 SP1, SUSE Linux Enterprise Server 15 SP1 with Xen, SUSE Linux Enterprise Server 15 SP2, SUSE Linux Enterprise Server 15 SP2 with Xen, VMware vSphere Hypervisor 6.7 (ESXi) Update 3, VMware vSphere Hypervisor 7.0 (ESXi), VMware vSphere Hypervisor 7.0 (ESXi) Update 1, VMware vSphere Hypervisor 7.0 (ESXi) Update 2
Connectivity
PCI Specification Revision: PCIe 4.0
Port Quantity: 2
Interface Provided: 2 x 32Gb Fibre Channel Gen 7 (Short Wave) - SFP+
Network & Adapter Ports: 32Gb Fibre Channel Gen 7 (Short Wave)
Host Interface: PCI Express 4.0 x8
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor: Plug-In Card
Low Profile: Low profile
Dimensions and Weight
Height: 2.7 inch
Depth: 6.6 inch
Included Items
Included Accessories: Full-height bracket, Low-profile bracket
Certifications and Listing
Compliant Standards: AS/NZS CISPR22:2009+A1 Class A, BSMI Class A, China RoHS, CSA 22.2, CSA 60950-1-07, cURus, Directive 2011/65/EU, EN 55022:2010 Class A, EN 55024:2010, EN 55032:2012, EN60950-1+A11+A1+A12+A2, FCC Part 15 A, ICES-003 Class A, MSIP Class A, RCM, RoHS, TUV, UL 60950-1 Second Edition, VCCI Class A
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - 1 year
Not sure this adapter or module fits your system? Send us your server, switch or storage model and the DatorPro team will confirm compatibility before you order.
