Product Information

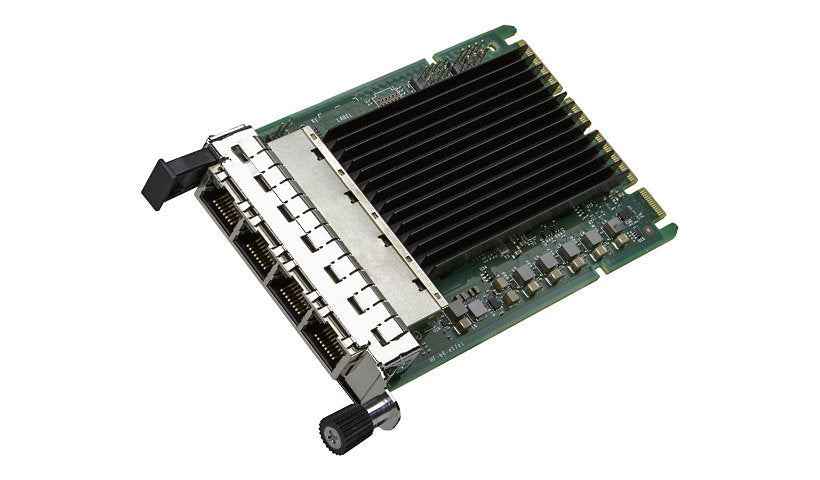

The Lenovo ThinkSystem Intel E610-T4 adapter (4XC7A96734) is a quad port 10GBase-T card in the OCP form factor, built on the Intel E610-XT4 controller. Its RJ-45 ports run at 1, 2.5, 5 or 10 Gb Ethernet and support VXLAN, NVGRE and GENEVE tunneling. Security features include root of trust, SPDM and FIPS 140-3 Level 1, and it is rated from -40 to 70 °C. The listing names compatible Lenovo parts including 4X97A83980 to 4X97A83984 and 00WE123 to 00WE139.
Key Features
- 4 x 10GBase-T RJ-45 ports
- Intel E610-XT4 controller
- OCP form factor
- Root of trust and SPDM
- FIPS 140-3 Level 1
- -40 to 70 °C rated
Product Information
Brand: Intel
Manufacturer: Lenovo
Product Line: Intel
Model: E610-T4
Product Type: Network adapter
Compatibility Specs: P/N: 00WE123, 00WE127, 00WE131, 00WE135, 00WE139, 4X97A83980, 4X97A83981, 4X97A83982, 4X97A83983, 4X97A83984
Packaged Quantity: 1
Color Category: Black, Green, Silver
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, Gigabit Ethernet
Network Standard: iSCSI, MCTP, RBT
Cable Type: Ethernet 1000Base-T, Ethernet 100Base-TX, Ethernet 10GBase-T, Ethernet 2.5GBase-T, Ethernet 5GBase-T
Encryption: FIPS 140-3 Level 1
Data Transfer Rate: 10 GBps
Features: Auto-negotiation, GENEVE support, Network Virtualization using Generic Routing Encapsulation (NVGRE), Root of Trust (RoT), Security Protocols and Data Models (SPDM), VxLAN tunneling
Connectivity
PCI Specification Revision: PCIe 4.0
Port Quantity: 4
Interface Provided: 4 x 10GBase-T - RJ-45
Network & Adapter Ports: 10Gb Ethernet
Host Interface: Open Compute Project mezzanine (OCP)
Memory and Processor
Processor Brand: Intel
Processor Number: E610-XT4
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 158 degree Fahrenheit
Operating Humidity: 10 - 90% RH (non-condensing)
Physical Characteristics
Form Factor: Plug-In Card
Dimensions and Weight
Height: 3 inch
Depth: 4.5 inch
Certifications and Listing
Compliant Standards: BSMI, CAN/CSA C22.2 No. 62368-1-14, cULus, EEE, KCC, RCM, UL 62368-1, VCCI
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - 1 year
