Product Information

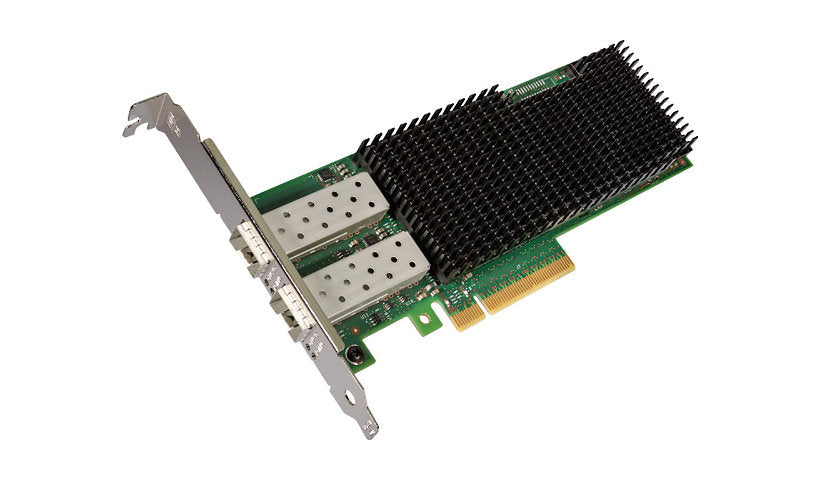

The Lenovo ThinkSystem Intel XXV710-DA2 adapter (7XC7A05523) is a low profile dual port 25 Gigabit SFP28 card on a PCIe 3.0 x8 interface. It follows on from the X710 10Gb adapters, keeping 10Gb support while adding 25GbE, with adapter fault tolerance, load balancing, LACP, NVGRE, PFC, jumbo frames up to 9,728 bytes and 4,096 VLAN tags. Both brackets are included. Listed systems include Lenovo ThinkAgile VX appliances and certified nodes.
Key Features
- 2 x 25GbE SFP28 ports
- Intel XXV710 controller
- PCIe 3.0 x8
- LACP and fault tolerance
- For Lenovo ThinkAgile VX
- Low profile, both brackets
Product Information
Brand: Intel
Manufacturer: Lenovo System X
Product Line: Intel
Model: XXV710-DA2
Product Type: Network adapter
Compatibility Specs: Lenovo ThinkAgile VX 1SE Certified Node 7Z58 ¦ Lenovo ThinkAgile VX 1U Certified Node 7Y93 ¦ Lenovo ThinkAgile VX Certified Node 7Y94, 7Z12 ¦ Lenovo ThinkAgile VX1320 Appliance 7Z58 ¦ Lenovo ThinkAgile VX3320 Appliance 7Y93 ¦ Lenovo ThinkAgile VX3520-G Appliance 7Y94 ¦ Lenovo ThinkAgile VX3720 Appliance 7Y92 ¦ Lenovo ThinkAgile VX5520 Appliance 7Y94 ¦ Lenovo ThinkAgile VX7520 Appliance 7Y94 ¦ Lenovo ThinkAgile VX7820 Appliance 7Z13 ¦ Lenovo ThinkSystem SD530 ¦ Lenovo ThinkSystem SR250 ¦ Lenovo ThinkSystem SR630 7X01, 7X02 ¦ Lenovo ThinkSystem SR650 7X05, 7X06 ¦ Lenovo ThinkSystem ST250 ¦ Lenovo ThinkSystem ST550
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 25 Gigabit Ethernet
Remote Management: RMON, SNMP
Data Transfer Rate: 25 GBps
Capacity: Jumbo frame size: 9728, VLAN tags: 4096
Operating System Required: Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Red Hat Enterprise Linux 6.9, Red Hat Enterprise Linux 7.3, Red Hat Enterprise Linux 7.4, SuSE Linux Enterprise Server 11 SP4, SuSE Linux Enterprise Server 11 SP4 with Xen, SuSE Linux Enterprise Server 12 SP2, SuSE Linux Enterprise Server 12 SP2 with Xen, SuSE Linux Enterprise Server 12 SP3, SuSE Linux Enterprise Server 12 SP3 with Xen, VMware ESXi 6.0 update 3, VMware ESXi 6.5 update 1
Features: Adapter Fault Tolerance (AFT), Adaptive load balancing (ALB), Advanced Packet Filtering, Class of Service (CoS), Energy Efficient Ethernet, Extended Message-Signaled Interrupts (MSI-X), Flow control, IP address filtering, IPv6 support, Large Send Offload (LSO), Link Aggregation Control Protocol (LACP), Network Virtualization using Generic Routing Encapsulation (NVGRE), Priority-Based Flow Control (PFC), PXE support, Quality of Service (QoS), Receive Side Scaling (RSS), Single Root I/O Virtualization (SR-IOV), Switch Fault Tolerance (SFT), Tagged VLAN, TCP/IP checksum offload, UDP/IP checksum offload, Virtual Ethernet Port Aggregator (VEPA), Virtual Extensible LAN (VXLAN), Virtual Machine Device Queues (VMDq), VLAN support, VM Load Balancing (VMLB)
Connectivity
Port Quantity: 2
Interface Provided: 2 x 25Gb Ethernet - SFP28
Network & Adapter Ports: 25 Gigabit SFP28
Host Interface: PCI Express 3.0 x8
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Physical Characteristics
Form Factor: Plug-In Card
Low Profile: Low profile
Dimensions and Weight
Height: 2.7 inch
Width: 0.6 inch
Depth: 6.6 inch
Included Items
Included Accessories: Full-height bracket, Low-profile bracket
Certifications and Listing
Compliant Standards #2: AS/NZS CISPR 22, BSMI, C-Tick, EN 55032, EN 61000-3-2, EN 61000-3-3, EN55024, FCC CFR47 Part 15 A, ICES-003 issue 4, IEEE 1588, KC, RoHS 2011/65/EU, RRL, UL 94 V-1, VCCI
Compliant Standards: IEEE 802.1as, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1Qbg, IEEE 802.1Qbh, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3az, IEEE 802.3bd, IEEE 802.3by, IEEE 802.3x
Compliant Standards: AS/NZS CISPR 22, BSMI, C-Tick, EN 55032, EN 61000-3-2, EN 61000-3-3, EN55024, FCC CFR47 Part 15 A, ICES-003 issue 4, IEEE 1588, KC, RoHS 2011/65/EU, RRL, UL 94 V-1, VCCI
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - 1 year
