Product Information

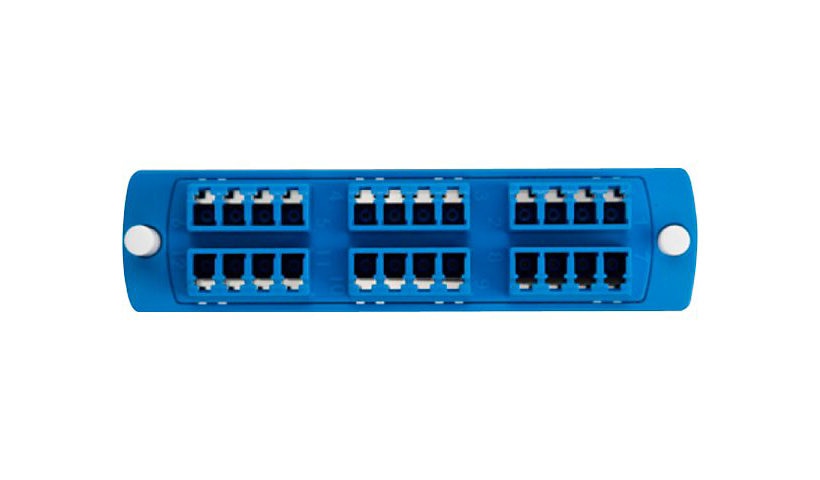

Leviton SDX fiber adapter plates work with SDX panels and enclosures to connect backbone-to-backbone or backbone-to-horizontal fiber. This tool-less, numbered plate has 24 LC single-mode connections with zirconia ceramic sleeves and meets TIA/EIA-568-C.3 and TIA/EIA-604-10.
Key Features
- SDX fiber adapter plate
- 24 LC SM (12 duplex)
- Tool-less, numbered
- Zirconia sleeves
- Blue
Product Information
Brand: Leviton
Manufacturer: Leviton
Product Line: Leviton Opt-X
Model: 5F100-4LL
Product Type: Faceplate
Category: Patch panels, outlets and components
Connectivity
Connectors Provided: 24 x LC single-mode female
Technical Information
Features: Modular design, No tools required, Numbered
Dimensions and Weight
Width: 4.9 inch
Height: 1.3 inch
Material: Polymer
Color: Blue
Included Item
Packaged Quantity: 1
Additional Information
Cable & Wiring Technology: Fiber optic
Intended For: Zirconia ceramic split sleeves
Wall Outlet Connectors: LC SM X 24
Certifications and Listing
Compliant Standards: OS1/OS2
Not sure this connector fits your setup? Send us your cable type, port and quantity, and the DatorPro team will help you confirm compatibility before you order.
