Product Information

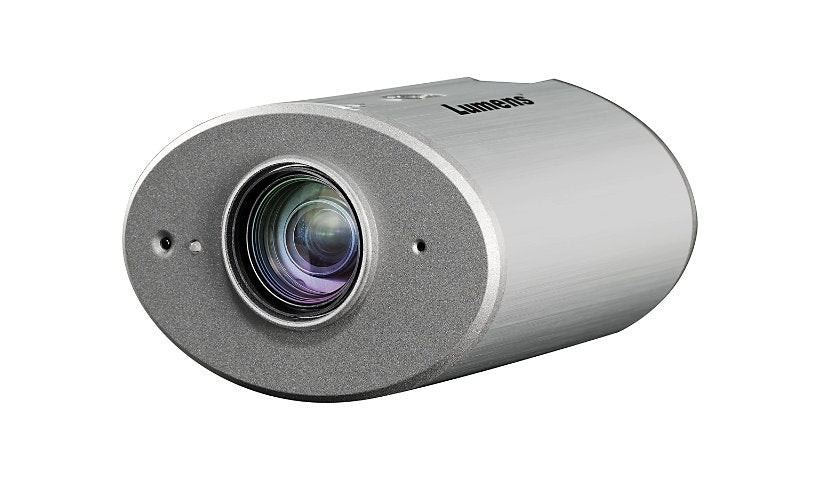

The Lumens CL511 is a 4K ceiling mounted document camera that gives presenters a clear top view of a tabletop or podium. It has a center laser mark for positioning, HDMI and VGA outputs, RTSP streaming, PoE+, USB, RS-232 and audio in and out, with a remote, U hanger and cables included. TAA compliant. It is a document camera, not a security camera.
Key Features
- 4K document camera
- Ceiling mounted
- Center laser mark
- HDMI, VGA, RTSP
- PoE+ power
- TAA compliant
Product Information
Brand: Lumens
Manufacturer: LUMENS
Product Line: Lumens
Model: CL511
Packaged Quantity: 1
Color Category: Gray
Network and Communication
Connectivity Technology: Wired
Operating System Required: Apple MacOS X, Google Chrome OS, Microsoft Windows 7 / 8 / 10
Features: 180° image rotation, 270° image rotation, 90° image rotation, Auto tuning, Center laser mark for positioning of objects, Image flip, Image mirror, IR extender, Pan across the screen, Picture-in-picture capability, Slide show, USB audio class (UAC 1.0), USB video class (UVC 1.1)
Connectivity
Network Interface: LAN
Protocols: RTSP
Ports: Audio line in, Audio line out, HDMI, IR, LAN/power - RJ-45, Serial RS-232, USB 2.0 - 4 pin USB Type B, USB 2.0 host - 4 pin USB Type A, VGA
Host Interface: USB 2.0
Technical Information
Video Signals: HDMI, VGA
Optical Zoom: 60
Control Interface: RS-232
Camera Type: Document camera
Camera Mount Type: Ceiling mount
Digital Zoom: 15
Total Pixels: 8,600,000 pixels
Video Modes: 1080/50p, 1080/60p, 2160/25p, 2160/30p, 720/50p, 720/60p
Image Sensor Size: 1/2.8"
Image Sensor Type: CMOS
Sensor Size (metric): 9.1 mm (1/2.8")
Max Frame Rate: 60 frames per second
Video Formats: H.264, MJPEG, YUV
Video Input: Color
Audio Support: Yes
Audio Formats: PCM
Touchscreen: No
Physical Characteristics
Theft Protection: Security lock slot (cable lock sold separately)
Security Slot Type: Kensington security slot
Dimensions and Weight
Height: 3.4 inch
Width: 5 inch
Depth: 5.6 inch
Weight: 28.22 ounce
Included Items
Included Accessories: 2 screws, Power connector, Remote control, U-hanger
Cables: 1 x IR extension cable - external, 1 x USB cable - external, 1 x VGA cable - external
