Product Information

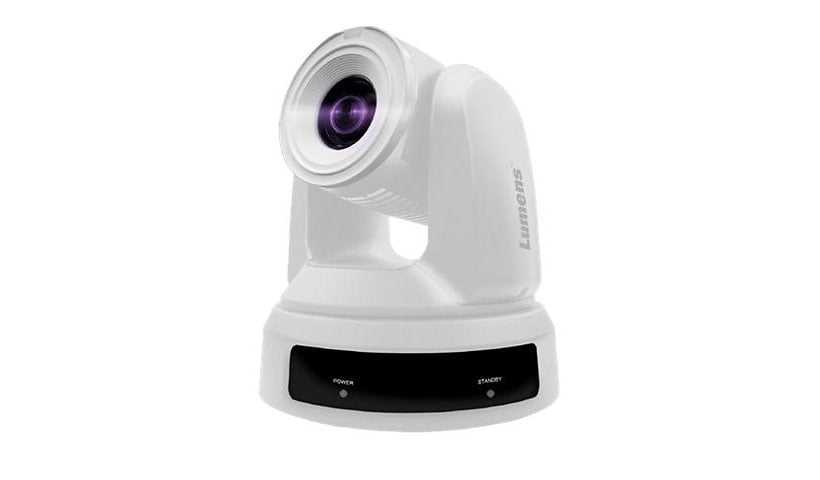

The Lumens VC-A53 (VC-A53W) is a white 1080p60 PTZ camera with 20x optical zoom, 3G-SDI, HDMI and USB 3.0 outputs, RS-232/RS-422 and VISCA control, FreeD support and 256 presets, on 12 V DC or PoE. TAA compliant, NDAA listed. It is a conference camera, not a security camera.
Key Features
- 1080p at 60 fps
- 20x optical zoom
- 3G-SDI, HDMI, USB 3.0
- FreeD support
- 256 presets
- PoE, TAA and NDAA
Product Information
Brand: Lumens
Manufacturer: LUMENS
Product Line: Lumens
Model: VC-A53
Packaged Quantity: 1
Color: White
Color Category: White
Network and Communication
Connectivity Technology: Wired
Features: 256 preset positions, 3D digital noise reduction (DNR), Auto exposure control, Auto gain control, Auto white balance, FreeD protocol support, Image flip, Manual gain control, Manual white balance, ONVIF support, Security slot (Kensington security lock compatible), Tally light, USB audio class (UAC 1.0), USB video class (UVC 1.1), VISCAIP protocol support, Wide Dynamic Range (WDR)
Connectivity
Network Interface: LAN
Protocols: RTMP, RTMPS, RTSP, SRT
Ports: 3G-SDI, Audio line in - 3.5 mm jack, HDMI output, LAN/power - RJ-45, Serial RS-232/RS-422 input, Serial RS-232/RS-422 output, USB 3.0 - 9 pin USB Type B
Host Interface: USB 3.0
Technical Information
Angular Field of View (D, Max, Degree): 65.4
Angular Field of View (H, Max, Degree): 57
Angular Field of View (V, Max, Degree): 32.1
Focus Modes: Automatic, Manual
Video Signals: 3G-SDI, HDMI, USB
Max Focal Length: 110 millimetre
Optical Zoom: 20
Control Interface: RS-232, RS-422, VISCA
Camera Type: Conference camera
Digital Zoom: 12
Max Panning Speed (degree/sec): 225
Max Tilting Speed (degree/sec): 225
Tilt: -30 to +90
Panning Range (degree): -170 to +170
Min Focus Distance: 19.7 inch
Minimum Illumination: 1 lux - 30 fps - F1.6 - 50 IRE
Total Pixels: 2,160,000 pixels
Video Modes: 1080/25p, 1080/30p, 1080/50p, 1080/60p, 720/30p, 720/50p, 720/60p
Image Sensor Size: 1/2.8"
Image Sensor Type: CMOS
Lens Aperture: F/1.6-3.8
Min Focal Length: 5.33 millimetre
Sensor Size (metric): 9.1 mm (1/2.8")
Digital Video Capture Resolution: 1920 x 1080
Max Frame Rate: 60 frames per second
Shutter Speed (Max): 1/10000 second (time unit)
Shutter Speed (Min): 1/1 second (time unit)
Video Formats: H.264, MJPEG, MPEG-TS
Video Input: Color
Audio Support: Yes
Audio Formats: AAC, PCM
Touchscreen: No
Max Video Resolution: 1920 x 1080
Physical Characteristics
Camera Mechanical Design: Pan / tilt / zoom
Dimensions and Weight
Height: 7.1 inch
Width: 7.8 inch
Depth: 6.9 inch
Weight: 4.41 lbs
Certifications and Listing
Compliant Standards: IEEE 802.3af, NDAA
TAA Compliant: Yes
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
