Product Information

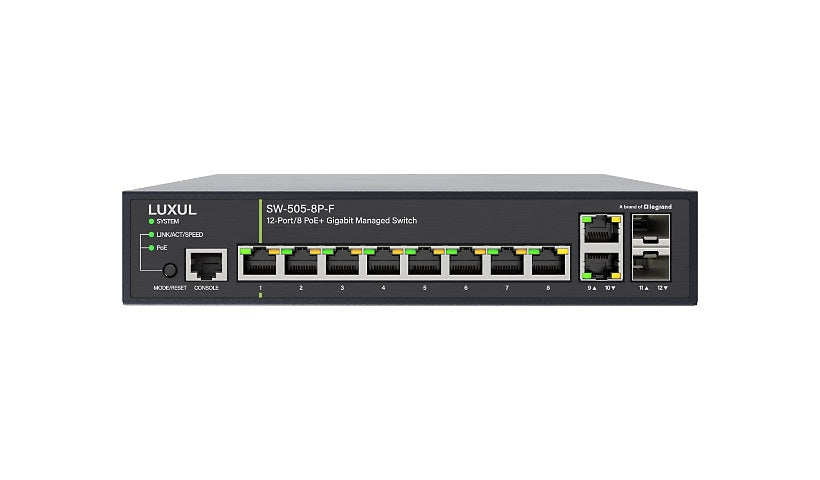

The Luxul SW-505-8P-F is a fanless managed switch with eight Gigabit PoE+ ports, two Gigabit RJ-45 ports and two SFP slots, all facing the front. It shares a 130 W PoE budget and is tuned for AV-over-IP, with support for Dante and AES67 audio networks. It offers Layer 2 and Layer 3 features and is TAA compliant.
Key Features
- 8 x Gigabit PoE+ RJ-45 ports, up to 30 W each
- 2 x Gigabit RJ-45 and 2 x Gigabit SFP ports
- 130 W PoE budget
- AV-over-IP ready: Dante and AES67
- L2/L3 managed: VLAN, QoS, IGMP snooping, ACL
- Front-facing ports, desktop or rack mount
- TAA compliant
Product Information
Brand: Luxul
Manufacturer: Legrand
Product Line: Luxul
Model: SW-505-8P-F
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Country: United States
Network and Communication
Advanced Switching: Layer 3
Switching Type: Gigabit Ethernet
Manageable: Yes
Routing Protocol: IGMP, IGMPv2, IGMPv3, MSTP, RSTP, STP
Performance: Forwarding rate (64-byte packets): 82 Mpps, Switching capacity: 24 Gbps
Capacity: VLAN IDs: 4095
MAC Address Table Size: 8K entries
Jumbo Frame Support: 9216 bytes
Features: ACL support, AES67 audio network, Dante audio network, IGMP snooping, Layer 2 switching, PoE self-healing, ProWatch, QoS, VLAN trunking
Connectivity
Ports: 10
Port Quantity: 8
Port Type: 10/100/1000 (PoE+)
Ports (2nd) Quantity: 2
Ports Type (2nd): 10/100/1000
Ports (3rd) Quantity: 2
Interface Provided: 2 x 10/100/1000 Base-T RJ-45, 4 x Gigabit LAN SFP uplink, 8 x 10/100/1000 Base-T (PoE+) RJ-45 30 Watt
Power Over Ethernet (PoE): PoE+
QSFP Slots: Gigabit SFP (uplink)
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50 - 60 hertz
Power Consumption Operational: 152 watt
PoE Budget: 130 watt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Desktop, Rack-mountable
Height (Rack Units): 1
Status Indicators: Link/activity, PoE, System
Rack Mounting Kit: Included
Dimensions and Weight
Height: 1.7 inch
Width: 8.7 inch
Depth: 9.5 inch
Weight: 5.51 lbs
Included Items
Included Accessories: 4 rubber feet, Rack mounting ears
Cables: 1 x power cable (US)
Certifications and Listing
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Compliant Standards: CB, cUL, EMC, FCC, IC, LVD, NDAA, RCM, RoHS, UKCA, UL, VCCI
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
TAA Compliant: Yes
Warranty
Service Activation: No
