Product Information

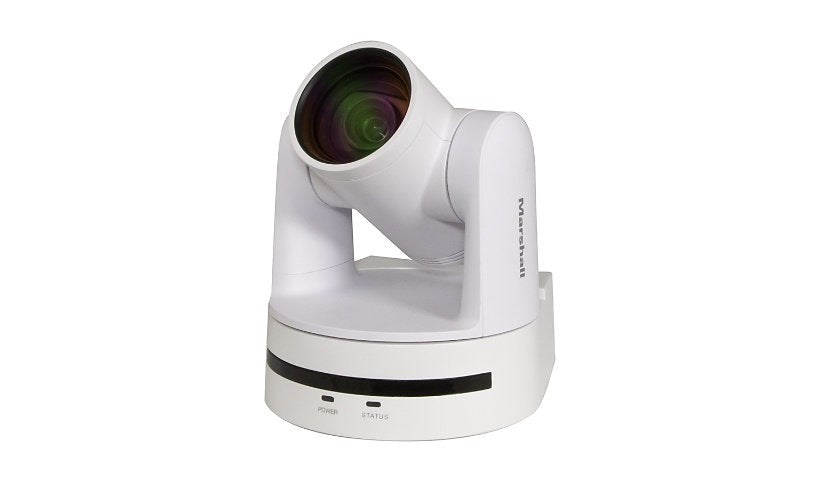

The Marshall CV612-TBI is a white indoor PTZ camera for live streaming, recording 1080p at up to 60 fps through a 4.1 to 49.2 mm lens with 12x optical zoom. It offers AI tracking and AI framing, 255 presets, 3G-SDI, HDMI and USB-C outputs and RS-232 control, on 12 V DC or PoE+. A remote and mounting hardware are included. It is a streaming camera, not a security camera.
Key Features
- 1080p at 60 fps
- 12x optical zoom
- AI tracking, framing
- 3G-SDI, HDMI, USB-C
- 255 presets
- 12 V or PoE+, white
Product Information
Brand: Marshall
Manufacturer: Marshall Electronics
Product Line: Marshall
Model: CV612-TBI
Packaged Quantity: 1
Color: White
Color Category: White
Network and Communication
Connectivity Technology: Wired
Features: >50 dB SNR, 255 preset positions, 2D Noise Reduction Technology, 3D Noise Reduction Technology, AI Tracking, AI-framing, Auto / manual focus, Auto white balance, Backlight Compensation (BLC), Colour saturation control, Contrast adjustment, Dante AV-H, Hue control, LED Indicator, Manual brightness adjustment, Manual white balance, ONVIF support, PELCO D protocol support, PELCO P protocol support, Sharpness control, VISCA over IP
Connectivity
Network Interface: Ethernet 1000Base-X
Protocols: HTTP, HTTPS, RTMP, RTP, RTSP, SRT, UDP
Ports: 3G-SDI - BNC, Audio line in - 3.5 mm stereo jack, HDMI output - HDMI Type A, LAN/power - RJ-45, Serial RS-232, USB 3.0 - 24-pin USB-C
Host Interface: USB-C 3.2 Gen1
Power
Power Device Form Factor: External
Technical Information
Angular Field of View (H, Max, Degree): 70.3
Focus Modes: Automatic, Manual
Video Signals: 3G-SDI, HDMI
Max Focal Length: 49.2 millimetre
Optical Zoom: 12
Control Interface: RS-232
Video Capture: 1280 x 720 @ 25/30 fps, 1280 x 720 @ 29.97 fps, 1280 x 720 @ 50/60 fps, 1280 x 720 @ 59.94 fps, 1920 x 1080 @ 25/30 fps, 1920 x 1080 @ 29.97 fps, 1920 x 1080 @ 50/60 fps, 1920 x 1080 @ 59.94 fps, 640 x 480 @ 30 fps, 720 x 480 @ 30 fps, 720 x 576 @ 30 fps, 800 x 600 @ 30 fps, 960 x 540 @ 30 fps
Camera Type: Live streaming camera
Camera Mount Type: Ceiling mount, Surface mount
Digital Zoom: 8
Max Panning Speed (degree/sec): 60
Max Tilting Speed (degree/sec): 30
Tilt: -90 to +90
Panning Range (degree): -170 to +170
Angular Field of View (H, Min, Degree): 6.6
Camera Iris: Manual iris
Minimum Illumination: 0.5 lux F1.8 - AGC on
Total Pixels: 2,073,600 pixels
Video Modes: 1080i, 1080p, 720p
Image Sensor Size: 1/2.8"
Image Sensor Type: CMOS
Lens Aperture: F/1.8-11
Min Focal Length: 4.1 millimetre
Sensor Size (metric): 9.1 mm (1/2.8")
Digital Video Capture Resolution: 1280 x 720, 1920 x 1080, 640 x 480, 720 x 480, 720 x 576, 800 x 600, 960 x 540
Max Frame Rate: 60 frames per second
Shutter Speed (Max): 1/10000 second (time unit)
Shutter Speed (Min): 1/60 second (time unit)
Focal Length Control: Motorized zoom
Video Formats: H.264, H.265, MJPEG, YUY2
Video Input: Color
Audio Support: Yes
Audio Formats: AAC
Audio Support Features: One-way audio capability
Touchscreen: No
Max Video Resolution: 1920 x 1080
Min Operating Temperature: 14 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 20 - 80%
Physical Characteristics
Indoor/Outdoor: Indoor
Camera Mechanical Design: Pan / tilt / zoom
Dimensions and Weight
Height: 6.4 inch
Width: 5.8 inch
Depth: 6.5 inch
Weight: 3.28 lbs
Included Items
Included Accessories: Mounting hardware, Remote control
Cables: 1 x USB-C cable - external
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
