Product Information

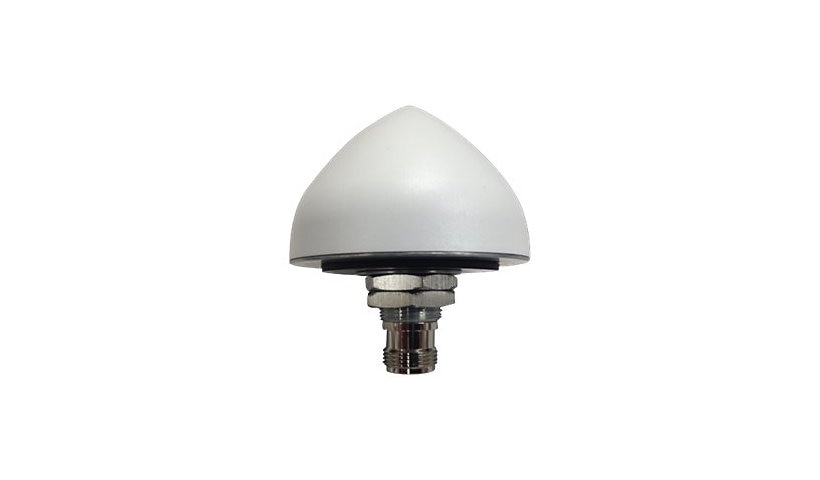

The Microchip 093-15202-006 is a high gain wideband GNSS antenna kit for SyncServer S600 and S650 time servers, covering GPS, GLONASS, Galileo and BeiDou L1/E1/B1 signals plus SBAS from 1557 to 1606 MHz. It is IP67 and MIL-STD-810F rated, has an N connector and ships with an L bracket for poles plus a 3 ft BNC to N adapter.
Key Features
- GNSS: GPS, GLONASS, Galileo, BeiDou
- For SyncServer S600 / S650
- IP67, MIL-STD-810F
- N connector
- L bracket for pole mount
- BNC to N adapter included
Product Information
Brand: Microchip
Manufacturer: Adaptec
Product Line: Microchip
Kit: Kit
Packaged Quantity: 1
Network and Communication
Antenna Placement: Pole mount
Antenna Compatibility: BeiDou, GALILEO, GLONASS, GNSS, GPS, SBAS
Frequency Range: 1559 - 1606 MHz
Signaling Type: Navigation
Antenna Type: Antenna
Connectivity
Connectors: 1 x antenna - N connector
Technical Information
Antenna Features: IP67, MIL-STD-810F, VSWR < 1.5
Dimensions and Weight
Height: 0.8 inch
Width: 2.6 inch
Depth: 2.6 inch
Weight: 5.29 ounce
Included Items
Accessories Included: L-type mounting bracket
Cables: 1 x BNC to N adapter - 3 ft
Warranty
Service Activation: No
