Product Information

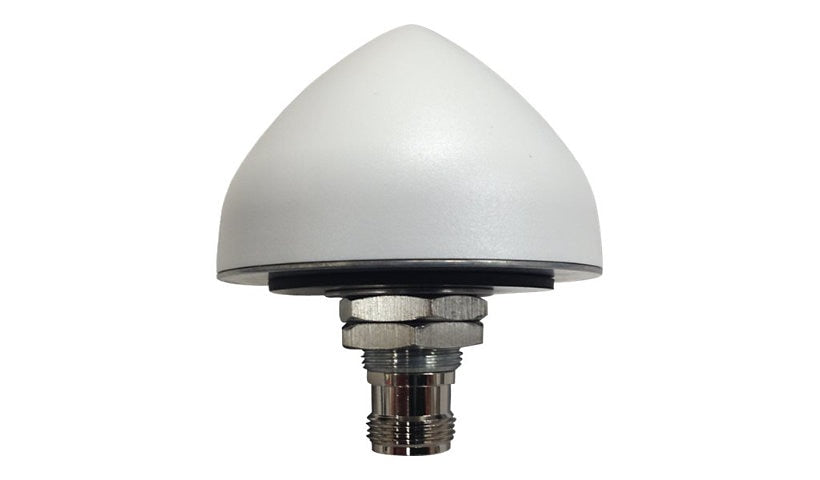

The Microchip 990-15202-125 is an outdoor GPS, GLONASS and SBAS dome antenna (1575 to 1606 MHz) with a built in amplifier listed at 40 dB gain. The kit includes 100 ft of cable, an extra 25 ft cable and a lightning arrestor, and the antenna is rated -40 to 185 °F.
Key Features
- GPS, GLONASS, SBAS
- Outdoor dome antenna
- 40 dB amplified (listed)
- 100 ft + 25 ft cables
- Lightning arrestor included
- -40 to 185 °F
Product Information
Brand: Microchip
Manufacturer: Adaptec
Product Line: Microchip
Product Type: Antenna
Category of Accessory: Antennas
Packaged Quantity: 1
Color Category: White
Network and Communication
Antenna Gain: 40 dBi
Antenna Placement: Outdoor
Antenna Compatibility: GLONASS, GPS, SBAS
Frequency Range: 1.575 - 1.606 GHz
Signaling Type: Navigation
Technical Information
Antenna Form Type: Dome
Voltage Standing Wave Ratio (VSWR): 1.5:1
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 185 degree Fahrenheit
Dimensions and Weight
Height: 0.8 inch
Width: 2.6 inch
Depth: 2.6 inch
Weight: 5.29 ounce
Included Items
Package Content: Antenna cable (30.5 m), Antenna cable (7.6 m), Lightning arrestor
Warranty
Service Activation: No
