Product Information

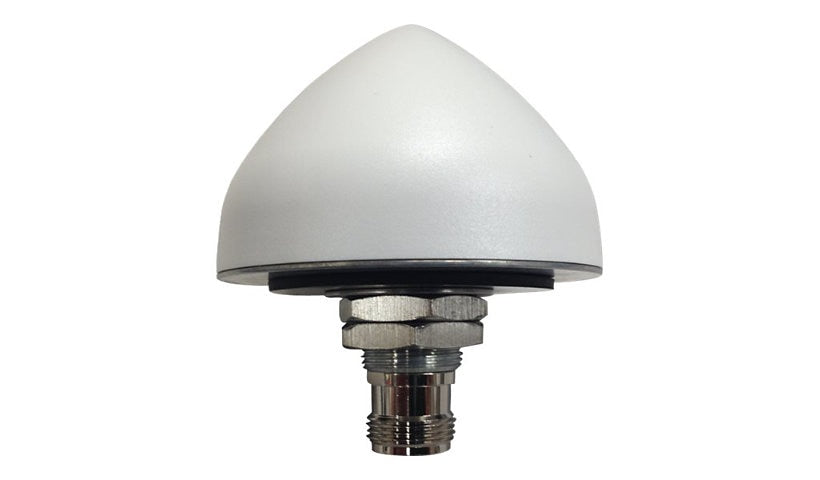

The Microchip 990-15202-175 is an outdoor dome antenna for GPS, GLONASS and SBAS timing and navigation, covering 1.575 to 1.606 GHz with VSWR of 1.5:1. It comes with 150 ft of standard cable, an extra 25 ft cable and a lightning arrestor. The spec sheet lists 40 dBi gain, so please confirm that figure if it matters for your setup.
Key Features
- Outdoor GNSS dome antenna
- GPS, GLONASS, SBAS
- 1.575 to 1.606 GHz
- 150 ft plus 25 ft cable
- Lightning arrestor included
- 40 dBi listed gain
Product Information
Brand: Microchip
Manufacturer: Adaptec
Product Line: Microchip
Product Type: Antenna
Category of Accessory: Antennas
Packaged Quantity: 1
Color Category: White
Network and Communication
Antenna Gain: 40 dBi
Antenna Placement: Outdoor
Antenna Compatibility: GLONASS, GPS, SBAS
Frequency Range: 1.575 - 1.606 GHz
Signaling Type: Navigation
Technical Information
Antenna Form Type: Dome
Voltage Standing Wave Ratio (VSWR): 1.5:1
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 185 degree Fahrenheit
Dimensions and Weight
Height: 0.8 inch
Width: 2.6 inch
Depth: 2.6 inch
Weight: 5.29 ounce
Included Items
Package Content: Antenna cable (45.7 m), Antenna cable (7.6 m), Lightning arrestor
Warranty
Service Activation: No
Not sure this antenna fits your hardware? Send us your access point or radio model and the DatorPro team will confirm the connector and compatibility before you order.
