Product Information

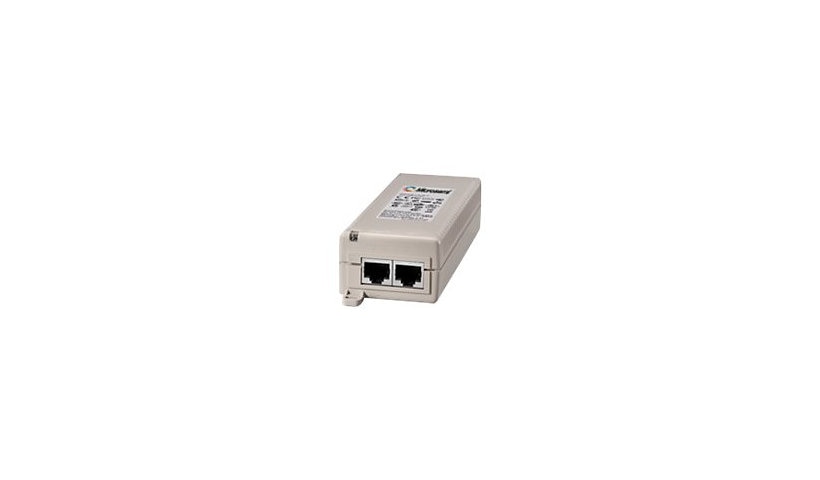

Microchip's PD-3501G/AC-US is a compact single port midspan that delivers 15.4 W at 48 V DC under 802.3af, for IP phones, WLAN access points and network cameras. It runs on 110 to 240 V AC. U.S. version.
Key Features
- 1-port PoE midspan
- 15.4 W at 48 V DC
- IEEE 802.3af
- AC 110-240 V input
- U.S. version
Product Information
Brand: Microchip
Manufacturer: Powerdsine
Product Line: Microchip
Model: PD-3501G/AC Midspan
Product Type: PoE Injector
Subcategory: Power converters, splitters and accessories
Packaged Quantity: 1
Color Category: Beige
Country: United States
Connectivity
Power Over Ethernet (PoE): PoE
Output Connector Quantity: 1
Power
Required Voltage: AC 110-240 volt
Frequency: 50 - 60 hertz
Power Device Features: LED indicators
Power Output Connectors Details: 1 x RJ-45
Power Provided: 15.4 watt
Form Factor (Power Device): External
Output Connector Type: RJ-45
Voltage Required Margin: ± 10%
Provided Voltage: DC 48 volt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 0 - 90% (non-condensing)
MTBF: 100,000 Hours
Dimensions and Weight
Height: 1.4 inch
Width: 2 inch
Depth: 6.3 inch
Weight: 7.05 ounce
Certifications and Listing
Compliant Standards: IEEE 802.3af
Compliant Standards: EN, EN 55032 Class B, EN55024, FCC Part 15 B, IEC 60950-1 Second Edition, RoHS, UL, VCCI, WEEE
ENERGY STAR Certified: No
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - 1 year
Service Activation: No
