Product Information

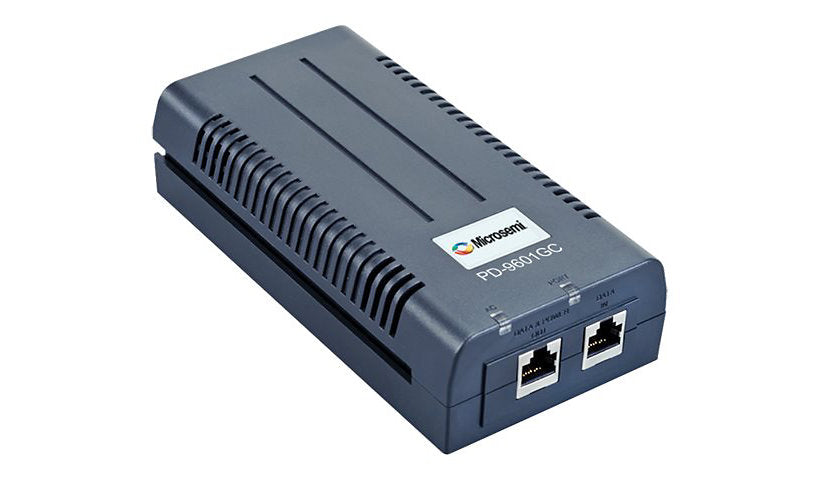

Microchip's PD-9601GC/AC-US is a single port Gigabit midspan that delivers 90 W at 54 V DC over all four pairs, supporting 802.3af, at and bt devices. It runs on 100 to 240 V AC. U.S. version.
Key Features
- 1 x Gigabit 4PPoE output, 90 W
- 802.3af / at / bt
- 54 V DC output
- AC 100-240 V input
- U.S. version
Product Information
Brand: Microchip
Manufacturer: Powerdsine
Product Line: Microchip
Model: PD-9601GC/AC
Product Type: PoE Injector
Subcategory: Power converters, splitters and accessories
Packaged Quantity: 1
Color Category: Black
Country: United States
Connectivity
Interface Provided: 1 x Gigabit LAN - RJ-45
Power Over Ethernet (PoE): 4PPoE
Output Connector Quantity: 1
Power
Required Voltage: AC 100-240 volt
Frequency: 50 - 60 hertz
Power Output Connectors Details: 1 x RJ-45
Power Provided: 90 watt
Form Factor (Power Device): External
Provided Voltage: DC 54 volt
Technical Information
Min Operating Temperature: 14 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 95% (non-condensing)
MTBF: 100,000 Hours
Dimensions and Weight
Height: 1.7 inch
Width: 3.5 inch
Depth: 6.6 inch
Weight: 16.75 ounce
Certifications and Listing
Compliant Standards: EN 55032 Class B, EN55024, FCC Part 15 B, IEC/EN/UL 60950-1, RoHS, VCCI, WEEE
Compliant Standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - 1 year
Not sure this fits your setup? Send us the model of the device you need to power or connect and the DatorPro team will confirm compatibility before you order.
