Product Information

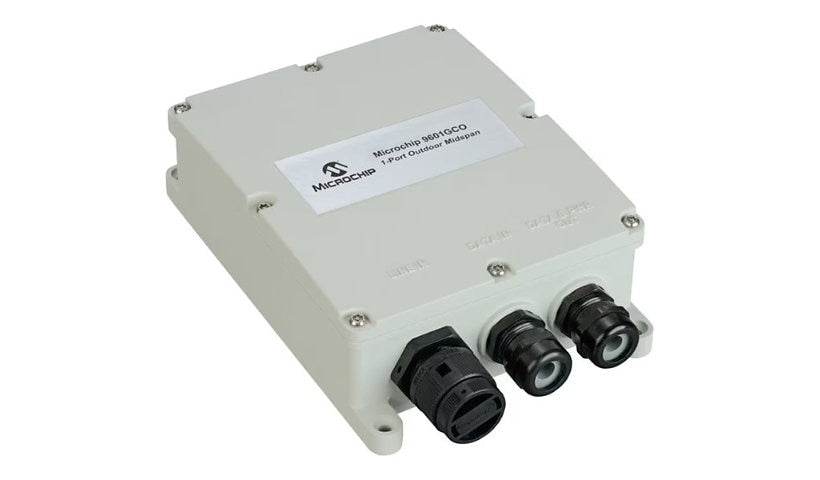

Microchip's PD-9601GCO/AC is an outdoor single port midspan that delivers 90 W under 802.3bt Type 4 over all four pairs. It is IP66/IP67 and NEMA 4X rated, works from -40 to 140 °F and outputs 54 V DC from 100 to 240 V AC, for access points, cameras and other IP devices.
Key Features
- 1 x Gigabit 4PPoE output, 90 W
- IEEE 802.3bt Type 4
- IP66/IP67, NEMA 4X
- Operating range -40 to 140 °F
- 54 V DC, AC 100-240 V input
Product Information
Brand: Microchip
Manufacturer: Powerdsine
Product Line: Microchip
Model: PD-9601GCO
Product Type: PoE Injector
Subcategory: Power converters, splitters and accessories
Packaged Quantity: 1
Color Category: White
Network and Communication
Features: For outdoor use
Connectivity
Interface Provided: 1 x Gigabit LAN - RJ-45
Power Over Ethernet (PoE): 4PPoE
Output Connector Quantity: 1
Power
Required Voltage: AC 100-240 volt
Frequency: 50 - 60 hertz
Power Device Features: Midspan
Power Output Connectors Details: 1 x RJ-45
Power Provided: 90 watt
Form Factor (Power Device): External
Provided Voltage: DC 54 volt
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 90% (non-condensing)
MTBF: 187000 Hours
Dimensions and Weight
Height: 2.4 inch
Width: 5.5 inch
Depth: 6.7 inch
Weight: 3.09 lbs
Certifications and Listing
Compliant Standards: ASTM B117, EN 55032 Class B, EN 55035, EN 60529, EN 62368-1, FCC-15 (Class B), GR-1089-CORE, Issue 6, IP66, IP67, ITU-T K.21, NEMA250 Type 4X, VCCI, WEEE
Compliant Standards: IEEE 802.3bt Type 4
Warranty
Limited Warranty: 3 Year
Service & Support Details: Limited warranty - 3 years
