Product Information

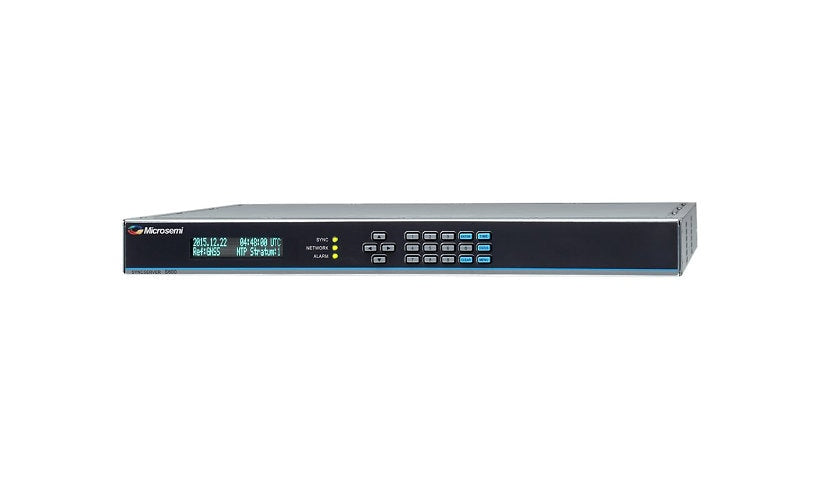

The Microchip SyncServer S600 (090-15200-600) is a 1U network time server that delivers hardware based NTP timestamps. It has built-in GPS, a keypad and LED panel, 4 gigabit RJ-45 ports, 2 BNC antenna connectors, an RS-232 DB-9 management port and an alarm output, and answers 10,000 NTP requests per second. It supports DHCP, IPv6, DoS protection and SMTP forwarding, with LDAP, RADIUS, TACACS+ and SSH login and HTTPS and SNMP v2c/v3 management. The listing shows no power supply installed, so please confirm what ships with it.
Key Features
- NTP time server
- Built-in GPS
- 10,000 NTP requests/s
- 4 gigabit RJ-45 ports
- 2 BNC antenna inputs
- 1U rack mount
Product Information
Brand: Microchip
Manufacturer: Powerdsine
Product Line: Microchip SyncServer
Model: S600
Product Type: Network time server
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Network Standard: DHCP, NTP
Remote Management: HTTPS, SNMP 2c, SNMP 3, SSH, SSH-2
Authentication Method: LDAP, RADIUS, Secure Shell (SSH), TACACS+
Encryption: MD5, SSL
Network Device: NTP requests: 10000 requests per second
Features: Administrator's password, DoS attack prevention, IPv4 support, IPv6 support, Management Information Base (MIB), NTP server, SMTP forwarding
Connectivity
Interface Provided: 1 x alarm, 1 x management (RS-232) - DB-9, 2 x antenna - BNC, 4 x 1000Base-T - RJ-45
Power
Power Supplies Installed: 0
Technical Information
Min Operating Temperature: 23 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 0 - 95% (non-condensing)
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Built-in Devices: GPS, Keypad, LED panel
Dimensions and Weight
Height: 1.7 inch
Width: 17.2 inch
Depth: 15.9 inch
Certifications and Listing
Compliant Standards: CISPR 22 Class A, CSA 22.2 No. 60950-1, EN 60950-1, ETSI 300 019, FCC Part 15 A, GR-63-CORE, IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-30, IEC 60068-2-31, IEC 60068-2-6, IEC 60068-2-64, IEC 60068-2-78, IEC 60950-1, MIL-STD 810G, NEBS, PSE Mark, RoHS 6/6, UL, VCCI
Warranty
Service Activation: No
