Product Information

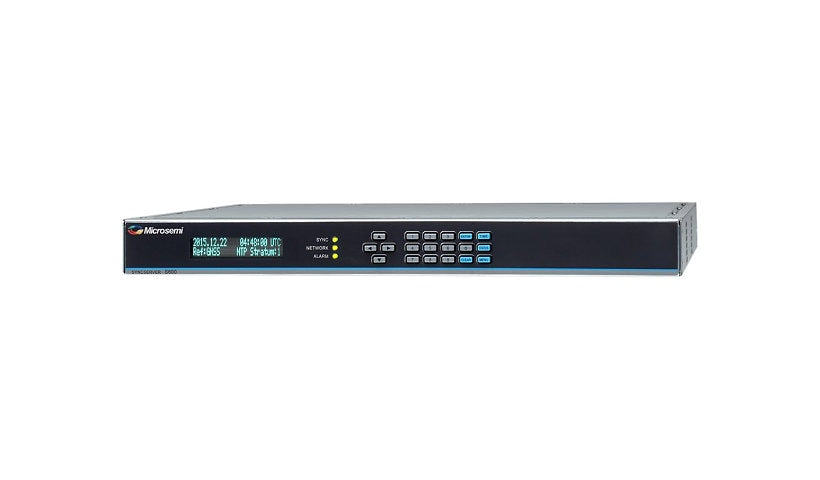

The Microchip SyncServer S600 (090-15200-606) is a 1U network time server that serves hardware based NTP timestamps, supplied here with a rubidium atomic oscillator. It has built-in GPS, a display and keypad, 4 gigabit RJ-45 ports, an RS-232 DB-9 management port and an alarm output, and handles 10,000 NTP requests per second. Security features include DoS protection, TLS 1.1 and 1.2, MD5 and LDAP, RADIUS or TACACS+ login, with HTTPS, SNMP v2c/v3 and SSH-2 management. Two redundant 50 W power supplies take 85 to 264 V AC, and rack mounting ears are included.
Key Features
- NTP time server
- Rubidium oscillator
- Built-in GPS receiver
- 10,000 NTP requests/s
- 4 gigabit RJ-45 ports
- Dual redundant PSUs, 1U
Product Information
Brand: Microchip
Manufacturer: Adaptec
Product Line: Microchip SyncServer
Model: S600
Product Type: Network time server
Packaged Quantity: 1
Color Category: Black
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Network Standard: SMTP
Remote Management: HTTPS, NTP, SNMP 2c, SNMP 3, SSH-2
Authentication Method: LDAP, RADIUS, TACACS+
Encryption: MD5, SSL, TLS 1.1, TLS 1.2
Network Device: NTP requests: 10000 requests per second
Features: Administrator's password, Auto duplex mode, Auto-negotiation, DoS attack prevention, IPv4 support, IPv6 support, Management Information Base (MIB), NTP server, Rubidium Oscillator, SMTP forwarding, SNTP support
Connectivity
Interface Provided: 1 x alarm, 1 x management (RS-232) - DB-9, 4 x 1000Base-T - RJ-45
Power
Device Type: Internal power supply
Frequency: 50/60 hertz
Power Provided: 50 watt
Power Supplies Installed: 2
Power Supplies Supported: 2
Redundant Power Supply: Yes
Technical Information
Min Operating Temperature: 23 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 0 - 95% (non-condensing)
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Built-in Devices: Display, GPS, Keypad
Dimensions and Weight
Height: 1.7 inch
Width: 17.2 inch
Depth: 15.9 inch
Weight: 12.57 lbs
Included Items
Included Accessories: Rack mounting ears
Bundled With: Rubidium Atomic Oscillator
Certifications and Listing
Compliant Standards: CISPR 22 Class A, CSA 22.2 No. 60950-1, EN 60950-1, ETSI 300 019, FCC Part 15 A, GR-63-CORE, IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-30, IEC 60068-2-31, IEC 60068-2-6, IEC 60068-2-64, IEC 60068-2-78, IEC 60950-1, MIL-STD 810G, NEBS, PSE Mark, RoHS 6/6, UL, VCCI
Warranty
Limited Warranty: 2 Year
Service & Support Details: Limited warranty - 2 years
Service Activation: No
