Product Information

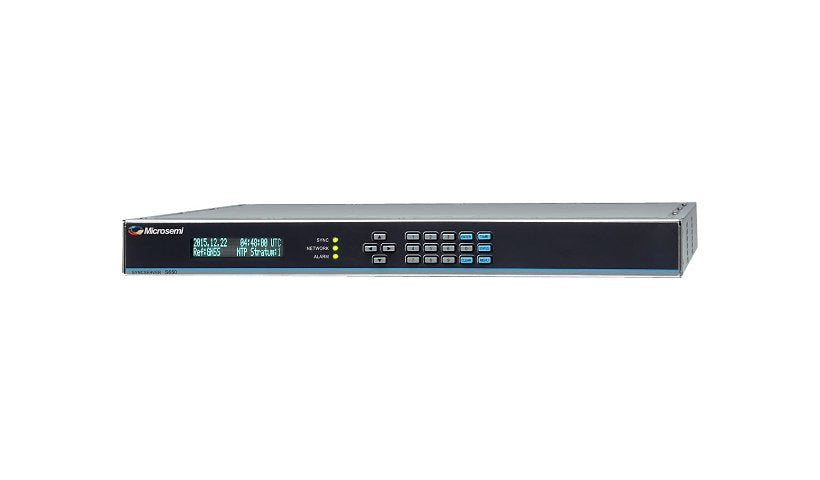

The Microchip SyncServer S650 (090-15200-651) is a modular 1U network time server with flexible timing signal outputs that can remove the need for a separate signal distribution chassis. It has built-in GPS, a keypad and LED panel, 4 gigabit RJ-45 ports, 6 BNC connectors, a DB-9 console, an RS-232 DB-9 management port and an alarm output, and answers 10,000 NTP requests per second. It supports DHCP, DHCPv6, syslog, DoS protection and IPv6, with LDAP, RADIUS, TACACS+ and SSH2 login and HTTPS and SNMP v2c/v3 management. One 65 W power supply is installed with room for a second, and a rack mount kit is included.
Key Features
- Modular NTP time server
- Built-in GPS
- 10,000 NTP requests/s
- 4 gigabit RJ-45 ports
- 6 BNC connectors
- 1 of 2 PSUs installed
Product Information
Brand: Microchip
Manufacturer: Adaptec
Product Line: Microchip SyncServer
Model: S650
Product Type: Network time server
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Network Standard: DHCP, DHCPv6, NTP, SMTP
Remote Management: HTTPS, SNMP 2c, SNMP 3, SSH-2
Authentication Method: LDAP, RADIUS, Secure Shell v.2 (SSH2), TACACS+
Encryption: MD5, SSL
Network Device: NTP requests: 10000 requests per second
Features: Administrator's password, DoS attack prevention, IPv4 support, IPv6 support, Management Information Base (MIB), NTP server, SMTP forwarding, Syslog support
Connectivity
Interface Provided: 1 x alarm, 1 x console - DB-9, 1 x management (RS-232) - DB-9, 4 x 1000Base-T - RJ-45, 6 x antenna - BNC
Power
Device Type: Internal power supply
Frequency: 50/60 hertz
Power Provided: 65 watt
Power Supplies Installed: 1
Power Supplies Supported: 2
Technical Information
Min Operating Temperature: -4 degree Fahrenheit
Max Operating Temperature: 149 degree Fahrenheit
Operating Humidity: 0 - 95% (non-condensing)
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Built-in Devices: GPS, Keypad, LED panel
Dimensions and Weight
Height: 1.7 inch
Width: 17.2 inch
Depth: 15.9 inch
Weight: 12.57 lbs
Included Items
Included Accessories: Rack mount kit
Certifications and Listing
Compliant Standards: CISPR 22 Class A, CSA 22.2 No. 60950-1, EN 60950-1, ETSI 300 019, FCC Part 15 A, GR-63-CORE, IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-30, IEC 60068-2-31, IEC 60068-2-6, IEC 60068-2-64, IEC 60068-2-78, IEC 60950-1, MIL-STD 810G, NEBS, PSE Mark, RoHS 6/6, UL 60950-1, VCCI
Warranty
Limited Warranty: 2 Year
Service & Support Details: Limited warranty - 2 years
Service Activation: No
