Product Information

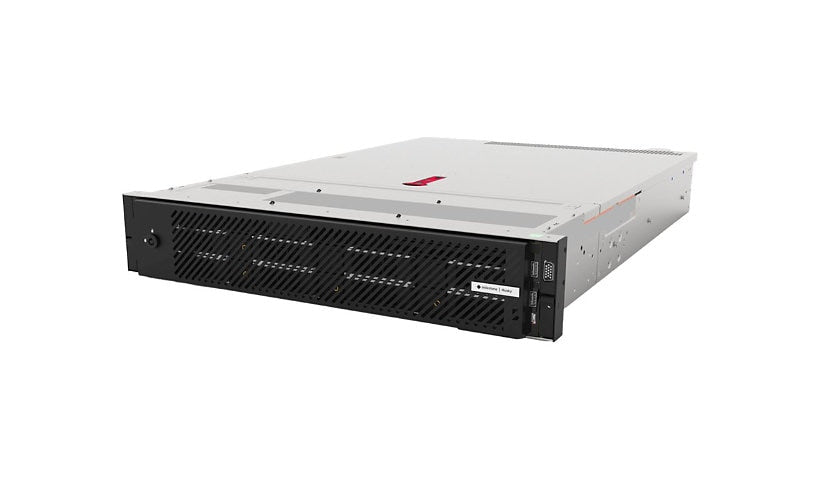

The Milestone Husky IVO 1000R (HE1000R-128TB) is a 2U rack recording appliance for up to 150 channels with 8 x 16 TB drives installed (128 TB) and room for 12. It runs an Intel Xeon Silver 4210R with 16 GB RAM on Windows Server IoT 2019 Essentials, with RAID 0 through 60, iDRAC9 Enterprise, TPM 2.0, four gigabit ports and two VGA outputs. 750 W.
Key Features
- 150 channels
- 8 x 16 TB, 128 TB
- Xeon Silver 4210R
- 16 GB RAM
- RAID 0 to 60
- 2U, iDRAC9, TPM 2.0
Product Information
Quantity Installed: 8
Quantity Supported: 12
Brand: Milestone
Manufacturer: Milestone
Product Line: Milestone Husky IVO
Model: 1000R
Device Type: Standalone NVR
Packaged Quantity: 1
Color Category: Black
Network and Communication
Network Interfaces: Ethernet 10Base-T/100Base-TX/1000Base-T
Network Ports: 10/100/1000Base-T x 4
Features #2: iDRAC9 Enterprise, RAID 0 support, RAID 1 support, RAID 10 support, RAID 5 support, RAID 50 support, RAID 6 support, RAID 60 support
Capacity: 16 TB
Operating System Edition: Microsoft Windows Server IoT 2019 Essentials
Features: 1080p resolution support, Trusted Platform Module 2.0 (TPM 2.0)
Features: iDRAC9 Enterprise, RAID 0 support, RAID 1 support, RAID 10 support, RAID 5 support, RAID 50 support, RAID 6 support, RAID 60 support
Connectivity
Video Output Ports: VGA x 2
Power
Input Voltage: 120 / 230 V
Frequency: 50/60 Hz
Power Consumption: 750 watt
Memory and Processor
Supported Max Total Capacity: 128 TB
Removable: Yes
CPU: Intel Xeon Silver 4210R
RAM: 16 GB
Technical Information
Frame Rate (Record): 30 fps
Record Events: Motion detection
Networked: Yes
Video Channels: 150
Min Operating Temperature: 50 degree Fahrenheit
Max Operating Temperature: 95 degree Fahrenheit
Operating Humidity: 10 - 85% (non-condensing)
Physical Characteristics
Rack-mountable: Rack-mountable
Height (Rack Units): 2
Dimensions and Weight
Height: 3.4 inch
Width: 17.1 inch
Depth: 27.3 inch
Weight: 65.43 lbs
Certifications and Listing
Compliant Standards: FCC, NDAA, NOM, RCM, UKCA, UL, VCCI
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
