Product Information

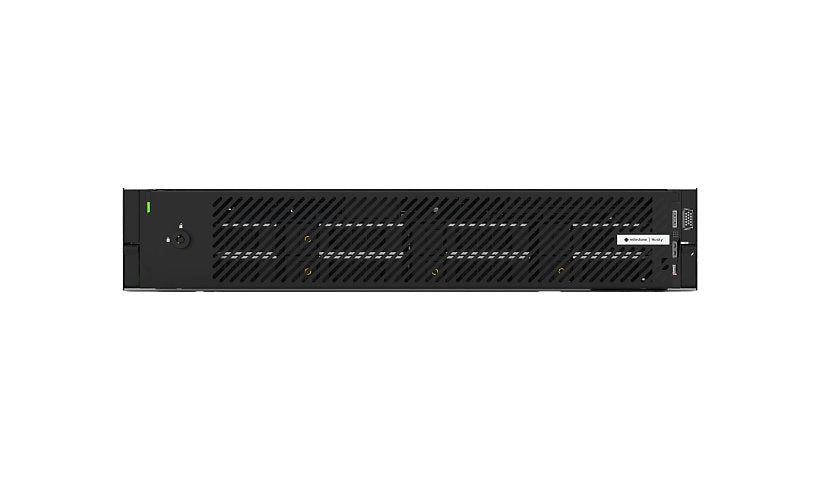

The Milestone Husky IVO 1800R (HE1800R-288TB) is a 2U rack NVR for 250 channels with 24 x 12 TB hot swap drives installed (288 TB), Intel Xeon Silver 4216, 32 GB RAM, iDRAC9 Enterprise, TPM 2.0, RAID 0, 1, 5, 6, 10, 50 and 60, 2 gigabit plus 2 x 10Gb ports and VGA, 120/230 V, 1100 W, built for large or critical video installs.
Key Features
- 250 channels
- 24 x 12 TB installed
- Xeon Silver 4216
- 32 GB RAM
- 2 x 10Gb ports
- 2U, iDRAC9 Enterprise
Product Information
Quantity Installed: 24
Quantity Supported: 24
Brand: Milestone
Manufacturer: Milestone
Product Line: Milestone Husky IVO
Model: 1800R
Device Type: Standalone NVR
Packaged Quantity: 1
Color Category: Black
Network and Communication
Network Interfaces: Ethernet 10Base-T/100Base-TX/1000Base-T / 10Gb Ethernet
Network Ports: 10/100/1000Base-T x 2 / 10Gb x 2
Features #2: iDRAC9 Enterprise, RAID 0 support, RAID 1 support, RAID 10 support, RAID 5 support, RAID 50 support, RAID 6 support, RAID 60 support
Capacity: 12 TB
Features: 1080p resolution support, Trusted Platform Module 2.0 (TPM 2.0)
Features: iDRAC9 Enterprise, RAID 0 support, RAID 1 support, RAID 10 support, RAID 5 support, RAID 50 support, RAID 6 support, RAID 60 support
Connectivity
Video Output Ports: VGA x 1
Power
Input Voltage: 120 / 230 V
Frequency: 50/60 Hz
Power Consumption: 1100 watt
Memory and Processor
Removable: Yes
CPU: Intel Xeon Silver 4216
RAM: 32 GB
Technical Information
Frame Rate (Record): 30 fps
Record Events: Motion detection
Networked: Yes
Video Channels: 250
Touchscreen: No
Min Operating Temperature: 50 degree Fahrenheit
Max Operating Temperature: 95 degree Fahrenheit
Operating Humidity: 10 - 85% (non-condensing)
Physical Characteristics
Rack-mountable: Rack-mountable
Height (Rack Units): 2
Dimensions and Weight
Height: 3.4 inch
Width: 17.6 inch
Depth: 31.9 inch
Weight: 88.18 lbs
Certifications and Listing
Compliant Standards: FCC, NDAA, NOM, RCM, UKCA, UL, VCCI
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
