Product Information

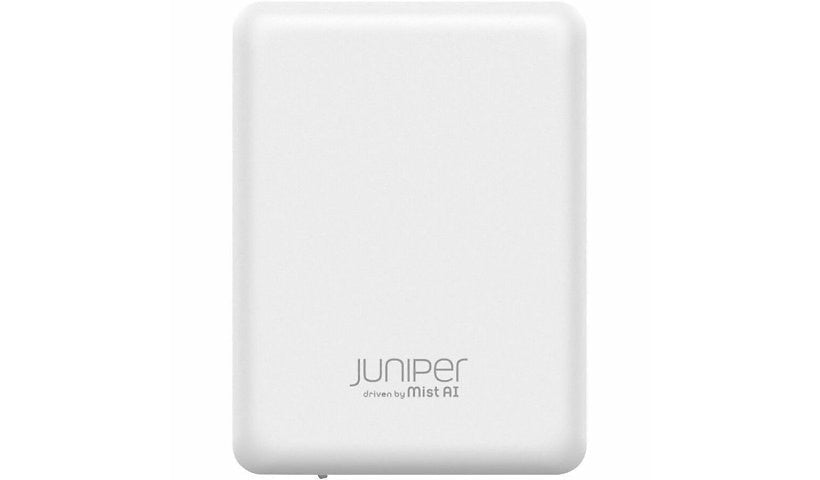

Juniper Mist's AP17 is a wall plate style Wi-Fi 7 AP for classrooms, hotels, apartments and retail, with tri-band coverage up to 9.38 Gbps and six antennas. It has four RJ-45 ports including PoE output and a 10G multi-gig uplink, and sits on a desk or wall.
Key Features
- Wi-Fi 7 tri-band
- Up to 9.38 Gbps
- 4 x RJ-45 ports, PoE out
- 10G multi-gig uplink, PoE in
- Wall plate or desktop
- Hospitality, MDU, education
Product Information
Brand: Mist
Manufacturer: Juniper Networks, Inc
Model: AP17
Product Type: Wireless Access Point
Usage: Campus, Classroom, Hospitality, Multi Dwelling Unit (MDU), Retail Store
Indoor & Outdoor: Indoor
Network and Communication
Data Link Protocols: 10 Gigabit Ethernet, Gigabit Ethernet
Wireless LAN: IEEE 802.11 a/b/g/n/ac/ax/be
Bluetooth Standard: Bluetooth 6
Beamforming Technology: Yes
MIMO Technology: Yes
Total Antennas: 6
Wireless Transmission Speed: 9.38 Gbit/s
Network Band: Tri Band
Antenna Form Factor: Internal
Antenna Type: Omnidirectional Antenna
Features: MIMO Technology
Connectivity
Network (RJ-45) Ports: 4
PoE (RJ-45) Port: Yes
USB: No
PoE PD Port: Yes
Physical Characteristics
Form Factor: Desktop, Wall Mountable, Wall Plate
Dimensions and Weight
Height: 2.2 inch
Width: 4.7 inch
Depth: 6.3 inch
Weight: 1.76 lb
Warranty
Limited Warranty: Lifetime
Not sure this fits your network? Send us your controller, switch or current access point model and the DatorPro team will confirm compatibility before you order.
