Product Information

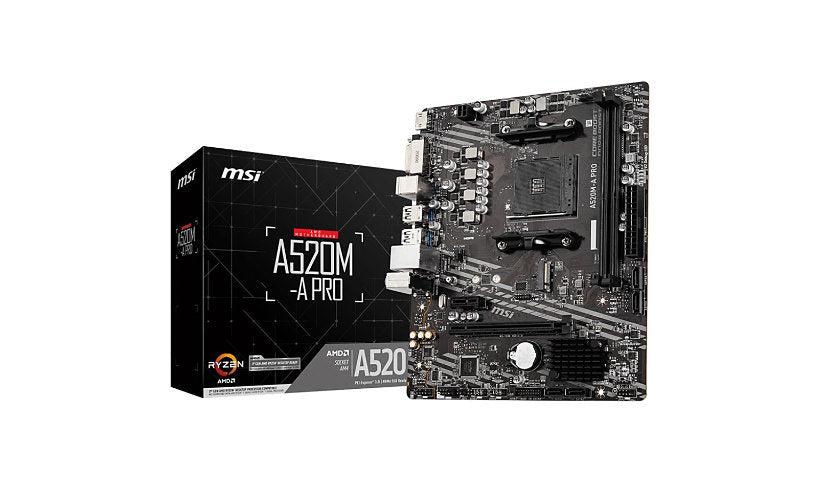

The MSI A520M-A PRO is a micro ATX board for AMD Ryzen 5000 and 3000 series and Ryzen 4000 G-series processors on Socket AM4. It has two DDR4 slots for up to 64 GB, Gigabit LAN and Core Boost power design. It comes with a 3 year limited warranty.
Key Features
- AMD A520 chipset, Socket AM4, micro ATX
- 2 x DDR4, up to 64 GB, up to 4600 MHz
- 1 x PCIe x16 and 1 x PCIe x1 slot
- Gigabit LAN, 7.1 channel audio
- RAID 0/1/10 support
- 3 year limited warranty listed
Product Information
Brand: MSI
Manufacturer: MSI
Series: PRO
Model: A520M-A PRO
Product Type: Desktop Motherboard
Country of Origin: China
Connectivity
Gigabit Ethernet: Yes
PCI Express Slots: 2
PCI Express x16 Slots: 1
PCI Express x1 Slots: 1
Audio Channels: 7.1
Memory and Processor
Processor Supported: Ryzen 3, Ryzen 5, Ryzen 7, Ryzen 9
Memory Form Factor: DIMM, UDIMM
RAID Supported: Yes
Onboard Video: CPU Dependent Video
Processor Socket: Socket AM4
Supported Memory Speed: 1866 megahertz, 2133 megahertz, 2400 megahertz, 2667 megahertz, 2800 megahertz, 2933 megahertz, 3000 megahertz, 3066 megahertz, 3200 megahertz, 3466 megahertz, 3600 megahertz, 3733 megahertz, 3866 megahertz, 4000 megahertz, 4133 megahertz, 4266 megahertz, 4400 megahertz, 4600 megahertz
Memory Slots: 2
Ram Capacity: 64 GB
Chipset Manufacturer: AMD
Chipset Model: A520
RAID Levels: 0, 1, 10
Memory Technology: DDR4 SDRAM
Total Processor Supported: 1
Physical Characteristics
Form Factor: Micro ATX
Dimensions and Weight
Width: 9.3 inch
Depth: 7.9 inch
Warranty
Limited Warranty: 3 Year
Not sure this board fits your build? Send us your processor, memory, case and power supply details, and the DatorPro team will confirm compatibility before you order.
