Product Information

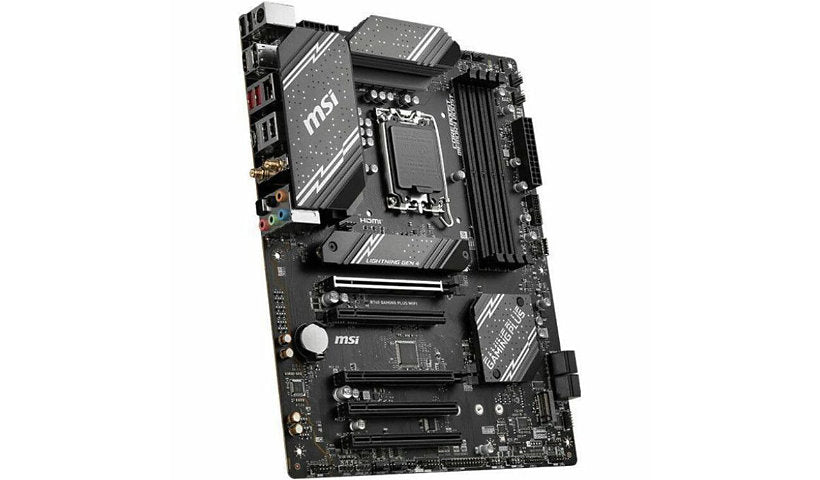

The MSI B760 GAMING PLUS WIFI is an ATX board for 12th and 13th gen Intel Core, Pentium Gold and Celeron processors on LGA1700. It has four DDR5 slots with speeds up to 6800 MHz, 2.5 Gigabit LAN, Wi-Fi 802.11ax and Bluetooth 5.3, plus an extended heatsink for steady performance. The spec lists up to 192 GB of memory, while the quick specs mention 64 GB, so please confirm if capacity matters.
Key Features
- Intel B760 chipset, LGA1700 socket, ATX
- 4 x DDR5 DIMM, up to 6800 MHz
- 2.5GbE, Wi-Fi 802.11ax, Bluetooth 5.3
- HDMI 2.1 and DisplayPort (CPU graphics required)
- 2 x USB 3.2 Gen 2 Type-A, 1 x Type-C, 4 SATA, RAID 0/1/5/10
- 7.1 channel audio with S/PDIF
Product Information
Brand: MSI
Manufacturer: MSI
Model: B760 GAMING PLUS WIFI
Product Type: Gaming Desktop Motherboard
Country of Origin: China
Network and Communication
Wireless LAN #2: Yes
Wireless LAN: IEEE 802.11 a/b/g/n/ac/ax
Wireless LAN: Yes
Bluetooth Standard: Bluetooth 5.3
Connectivity
Bluetooth: Yes
Gigabit Ethernet: Yes
2.5Gigabit Ethernet: Yes
PCI Express Slots: 5
PCI Express Standard: PCI Express 3.0, PCI Express 4.0
PCI Express x16 Slots: 5
HDMI Version: 2.1
Onboard USB 2.0 Ports: 4
Onboard USB Ports: 7
SPDIF: Yes
USB 2.0 Ports: 4
USB 3.2 Gen 2 Type-A Ports: 2
USB 3.2 Gen 2 Type-C Ports: 1
Audio Channels: 7.1
DisplayPort: Yes
Total USB Ports: 7
Network (RJ-45) Ports: 1
HDMI: Yes
Memory and Processor
Processor Supported: Celeron, Core, Pentium Gold
Memory Form Factor: DIMM, UDIMM
RAID Supported: Yes
SATA Interfaces: 4
Onboard Video: CPU Dependent Video
Processor Socket: Socket LGA-1700
Supported Memory Speed: 4800 megahertz, 5000 megahertz, 5200 megahertz, 5400 megahertz, 5600 megahertz, 5800 megahertz, 6000 megahertz, 6200 megahertz, 6400 megahertz, 6600 megahertz, 6800 megahertz
Memory Slots: 4
Ram Capacity: 192 GB
Chipset Manufacturer: Intel
Chipset Model: B760
RAID Levels: 0, 1, 10, 5
Memory Technology: DDR5 SDRAM
Total Processor Supported: 1
Physical Characteristics
Form Factor: ATX
Dimensions and Weight
Width: 12 inch
Depth: 9.6 inch
Not sure this board fits your build? Send us your processor, memory, case and power supply details, and the DatorPro team will confirm compatibility before you order.
