Product Information

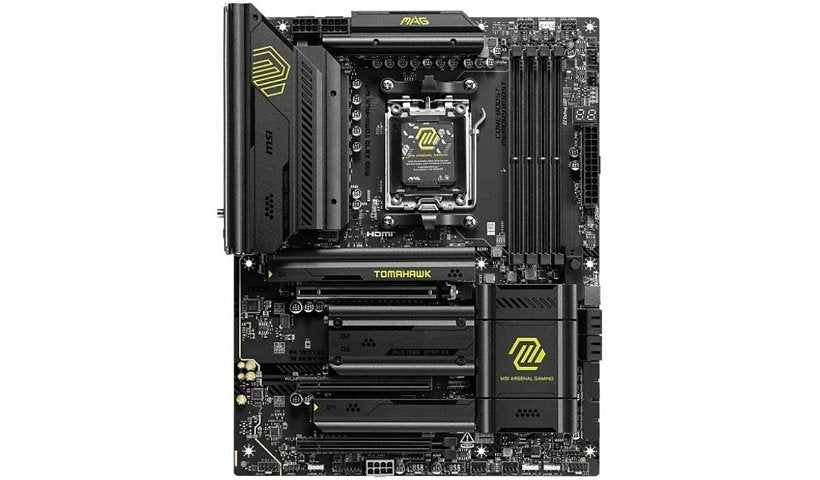

The MSI MAG X870 TOMAHAWK WIFI is an ATX gaming board for AMD Ryzen processors on Socket AM5. It supports up to 256 GB of DDR5 at up to 8400 MHz, Wi-Fi 7 with Bluetooth 5.4, a 40 Gbps USB4 port and a tool-free M.2 heatsink (EZ M.2 Shield Frozr II). The description mentions 5G LAN while the spec only lists Gigabit Ethernet, so please confirm the LAN speed.
Key Features
- AMD X870 chipset, Socket AM5, ATX
- 4 x DDR5, up to 256 GB, up to 8400 MHz
- Wi-Fi 7, Bluetooth 5.4
- USB4 40 Gbps, 12 USB ports total
- HDMI and DisplayPort, 4 x SATA, RAID 0/1/10
- EZ M.2 Shield Frozr II, supplemental PCIe power
Product Information
Brand: MSI
Manufacturer: MSI
Product Line: MAG
Model: X870 TOMAHAWK WIFI
Product Type: Gaming Desktop Motherboard
Network and Communication
Wireless LAN #2: Yes
Wireless LAN: IEEE 802.11 a/b/g/n/ac/ax/be
Wireless LAN: Yes
Bluetooth Standard: Bluetooth 5.4
Connectivity
Bluetooth: Yes
Gigabit Ethernet: Yes
PCI Express Slots: 3
PCI Express Standard: PCI Express 3.0, PCI Express 4.0, PCI Express 5.0
PCI Express x16 Slots: 1
PCI Express x4 Slots: 1
PCI Express x1 Slots: 1
HDMI Version: 2.1,1.4
Onboard USB 2.0 Ports: 4
Onboard USB Ports: 9
SPDIF: Yes
USB 2.0 Ports: 4
Audio Channels: 7.1
DisplayPort: Yes
Total USB Ports: 12
Network (RJ-45) Ports: 1
HDMI: Yes
Memory and Processor
Processor Supported: Ryzen 7, Ryzen 9
Memory Form Factor: DIMM, UDIMM
RAID Supported: Yes
SATA Interfaces: 4
Onboard Video: CPU Dependent Video
Multi GPU Supported: CrossFireX
Processor Socket: Socket AM5
Supported Memory Speed: 4800 megahertz, 5000 megahertz, 5200 megahertz, 5400 megahertz, 5600 megahertz, 5800 megahertz, 6000 megahertz, 6200 megahertz, 6400 megahertz, 6600 megahertz, 6800 megahertz, 7000 megahertz, 7200 megahertz, 7600 megahertz, 7800 megahertz, 8000 megahertz, 8200 megahertz, 8400 megahertz
Memory Slots: 4
Ram Capacity: 256 GB
Chipset Manufacturer: AMD
Chipset Model: X870
RAID Levels: 0, 1, 10
Memory Technology: DDR5 SDRAM
Total Processor Supported: 1
Physical Characteristics
Form Factor: ATX
Dimensions and Weight
Width: 12 inch
Depth: 9.6 inch
Not sure this board fits your build? Send us your processor, memory, case and power supply details, and the DatorPro team will confirm compatibility before you order.
