Product Information

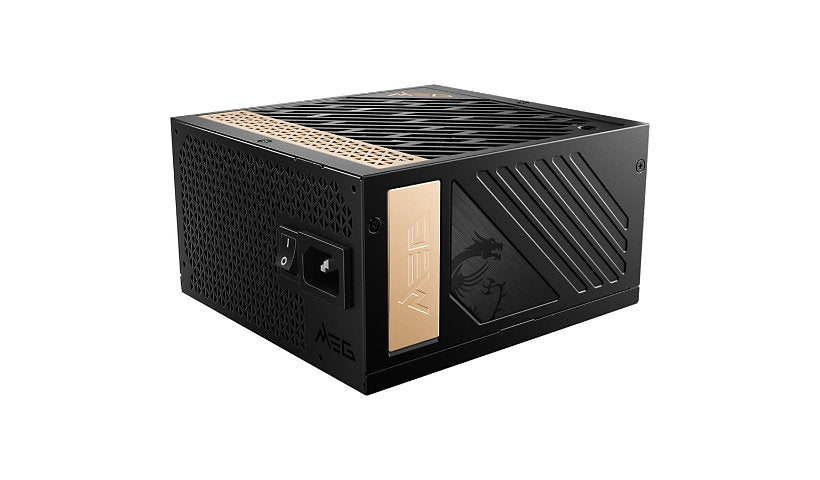

The MSI MEG Ai1300P PCIE5 is a 1300 W fully modular power supply with 80 PLUS Platinum efficiency (92%) and ATX 3.1 / PCIe 5.1 readiness. A single +12V rail delivers 108.3 A through a native 16-pin connector, and it uses an LLC full-bridge design with DC-DC. It carries a 10 year limited warranty.
Key Features
- 1300 W output, 80 PLUS Platinum, 92% efficiency
- ATX 3.1, PCIe 5.1 ready, native 16-pin
- Single +12V rail at 108.3 A
- LLC full-bridge with DC-DC, active PFC
- 120 mm fan, fully modular
- 10 year limited warranty listed
Product Information
Brand: MSI
Manufacturer: MSI
Series: MEG
Model: Ai1300P PCIE5
Product Type: Power Supply
Power
+12V Rails: 1
Output Voltage: -12 V DC @ 0.3 A, 12 V DC @ 108.3 A, 3.3 V DC @ 25 A, 5 V DC @ 25 A, 5 VSB @ 3 A
Input Voltage Range: 100 V AC - 240 V AC
Power Provided: 1300 watt
Efficiency: 92 percent
Technical Information
Specification Compliance: ATX 3.1
Physical Characteristics
Fan Diameter: 120 millimetre
Form Factor: Internal
Supported Devices: PC
Dimensions and Weight
Height: 6.3 inch
Width: 5.9 inch
Depth: 3.4 inch
Weight: 7.60 lb
Certifications and Listing
Environmentally Friendly: Yes
Environmental Certification: 80 Plus Platinum
Warranty
Limited Warranty: 10 Year
Not sure this power supply fits your system? Send us your server, workstation or PC model and current PSU details, and the DatorPro team will confirm wattage, connectors and fit before you order.
