Product Information

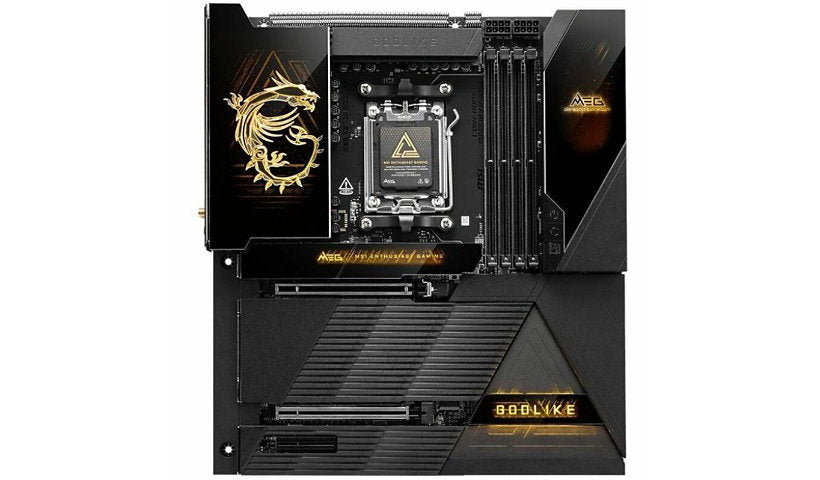

The MSI MEG X870E GODLIKE is a flagship Extended ATX board for AMD Ryzen 9000, 8000 and 7000 processors on Socket AM5. It brings Wi-Fi 7, 10G LAN, USB4, supplemental PCIe power and Dynamic Dashboard III, a small 3.99 inch color screen that shows hardware status and BIOS update progress. It carries a 3 year limited warranty.
Key Features
- AMD X870E chipset, Socket AM5, Extended ATX
- 4 x DDR5, up to 256 GB, up to 9000 MHz
- 10 Gigabit LAN, Wi-Fi 7, Bluetooth 5.4
- PCIe 5.0 and 4.0 slots, USB4
- Dynamic Dashboard III 3.99 inch LCD, EZ Link design
- 3 year limited warranty listed
Product Information
Brand: MSI
Manufacturer: MSI
Product Line: MEG
Model: X870E GODLIKE
Product Type: Gaming Desktop Motherboard
Network and Communication
Wireless LAN #2: Yes
Wireless LAN: IEEE 802.11 a/b/g/n/ac/ax/be
Wireless LAN: Yes
Bluetooth Standard: Bluetooth 5.4
Connectivity
Bluetooth: Yes
Gigabit Ethernet: Yes
10Gigabit Ethernet: Yes
PCI Express Slots: 3
PCI Express Standard: PCI Express 4.0, PCI Express 5.0
PCI Express x16 Slots: 2
PCI Express x4 Slots: 1
Audio Channels: 7.1
Memory and Processor
Processor Supported: Ryzen 7, Ryzen 9
Memory Form Factor: DIMM, UDIMM
RAID Supported: Yes
Onboard Video: CPU Dependent Video
Processor Socket: Socket AM5
Supported Memory Speed: 4800 megahertz, 5600 megahertz, 6400 megahertz, 8400 megahertz, 9000 megahertz
Memory Slots: 4
Ram Capacity: 256 GB
Chipset Manufacturer: AMD
Chipset Model: X870E
RAID Levels: 0, 1, 10
Memory Technology: DDR5 SDRAM
Total Processor Supported: 1
Physical Characteristics
Form Factor: Extended ATX
Dimensions and Weight
Width: 12 inch
Depth: 10.9 inch
Warranty
Limited Warranty: 3 Year
