Product Information

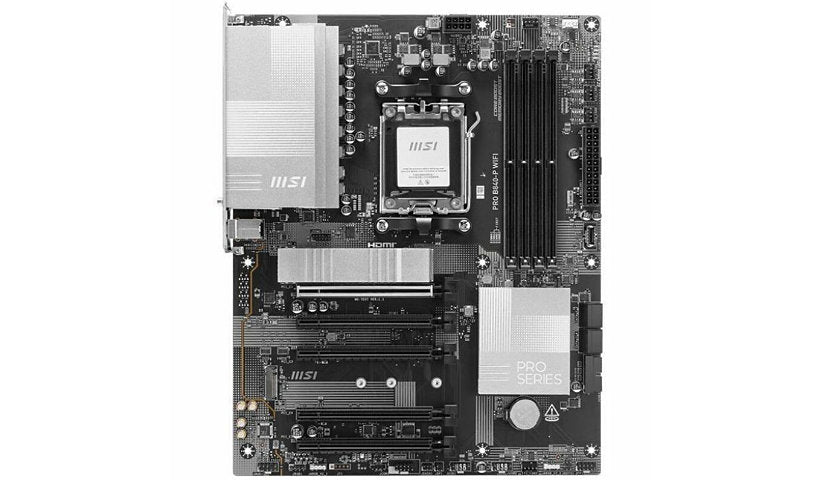

The MSI PRO B840-P WIFI is a silver ATX board for AMD Ryzen 9000 series processors on Socket AM5. It supports up to 256 GB of DDR5 at up to 8000 MHz and adds Wi-Fi 7 (EZ Antenna), a 2.5 Gigabit LAN port and PCIe 4.0 M.2 storage under a tool-free EZ M.2 Shield Frozr II heatsink.
Key Features
- AMD B840 chipset, Socket AM5, ATX
- 4 x DDR5, up to 256 GB, up to 8000 MHz
- Wi-Fi 7, Bluetooth 5.4, 2.5GbE
- 2 x PCIe x16 and 3 x PCIe x1 slots
- PCIe 4.0 M.2 with EZ M.2 Shield Frozr II
- RAID 0/1/10, silver design
Product Information
Brand: MSI
Manufacturer: MSI
Product Line: Pro
Model: B840-P WIFI
Product Type: Gaming Desktop Motherboard
Color Category: Silver
Color Family: Silver
Network and Communication
Wireless LAN #2: Yes
Wireless LAN: IEEE 802.11 a/b/g/n/ac/ax/be
Wireless LAN: Yes
Bluetooth Standard: Bluetooth 5.4
Connectivity
Bluetooth: Yes
Gigabit Ethernet: Yes
2.5Gigabit Ethernet: Yes
PCI Express Slots: 5
PCI Express Standard: PCI Express 3.0, PCI Express 4.0
PCI Express x16 Slots: 2
PCI Express x1 Slots: 3
Audio Channels: 7.1
Memory and Processor
Processor Supported: Ryzen 7, Ryzen 9
Memory Form Factor: DIMM, UDIMM
RAID Supported: Yes
Onboard Video: CPU Dependent Video
Processor Socket: Socket AM5
Supported Memory Speed: 4800 megahertz, 5600 megahertz, 6400 megahertz, 8000 megahertz
Memory Slots: 4
Ram Capacity: 256 GB
Chipset Manufacturer: AMD
Chipset Model: B840
RAID Levels: 0, 1, 10
Memory Technology: DDR5 SDRAM
Total Processor Supported: 1
Physical Characteristics
Form Factor: ATX
Dimensions and Weight
Width: 12 inch
Depth: 9.6 inch
