Product Information

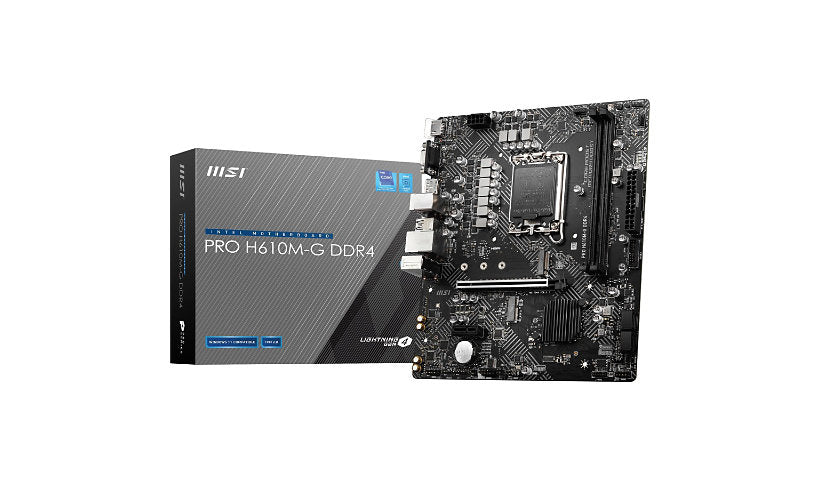

The MSI PRO H610M-G DDR4 is a micro ATX board for Intel Core, Pentium Gold and Celeron processors on LGA1700. It supports up to 64 GB of DDR4 at 3200 MHz, has HDMI, DisplayPort and VGA outputs for CPU graphics, and uses PCIe Steel Armor to protect the graphics slot. It carries a 3 year limited warranty.
Key Features
- Intel H610 chipset, LGA1700, micro ATX
- 2 x DDR4, up to 64 GB, up to 3200 MHz
- HDMI, DisplayPort and VGA (CPU graphics required)
- 4 SATA ports, Gigabit LAN
- PCIe Steel Armor, Frozr AI cooling
- 3 year limited warranty listed
Product Information
Brand: MSI
Manufacturer: MSI
Series: PRO
Model: H610M-G DDR4
Product Type: Desktop Motherboard
Country of Origin: China
Connectivity
Gigabit Ethernet: Yes
PCI Express Slots: 2
PCI Express Standard: PCI Express 3.0, PCI Express 4.0
PCI Express x16 Slots: 1
PCI Express x1 Slots: 1
Onboard USB 2.0 Ports: 2
Onboard USB Ports: 6
Onboard USB 3.2 Ports: 4
USB 2.0 Ports: 4
USB 3.2 Gen 2 Type-A Ports: 2
Audio Channels: 7.1
DisplayPort: Yes
Total USB Ports: 6
Network (RJ-45) Ports: 1
HDMI: Yes
VGA: Yes
Memory and Processor
Processor Supported: Celeron, Core i3, Core i5, Core i7, Core i9, Pentium Gold
Memory Form Factor: DIMM, UDIMM
SATA Interfaces: 4
Onboard Video: CPU Dependent Video
Processor Socket: Socket LGA-1700
Supported Memory Speed: 2133 megahertz, 2666 megahertz, 2933 megahertz, 3200 megahertz
Memory Slots: 2
Ram Capacity: 64 GB
Chipset Manufacturer: Intel
Chipset Model: H610
Memory Technology: DDR4 SDRAM
Total Processor Supported: 1
Physical Characteristics
Form Factor: Micro ATX
Dimensions and Weight
Width: 9.3 inch
Depth: 8 inch
Warranty
Limited Warranty: 3 Year
Not sure this board fits your build? Send us your processor, memory, case and power supply details, and the DatorPro team will confirm compatibility before you order.
