Product Information

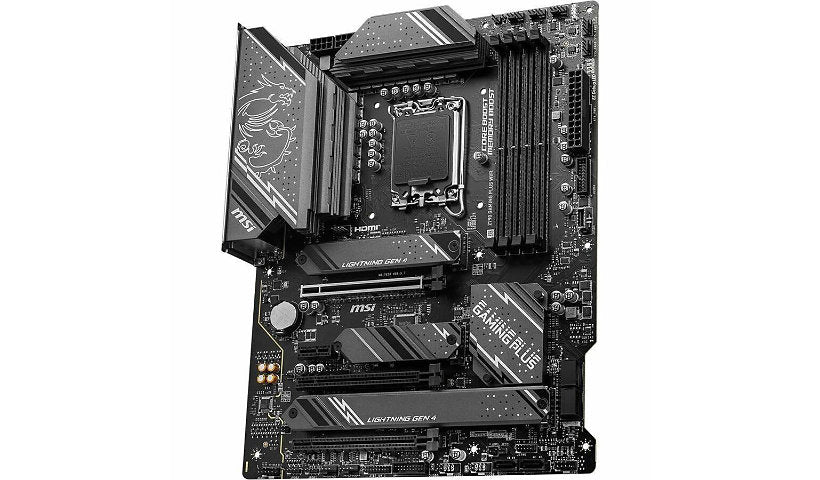

The MSI Z790 GAMING PLUS WIFI is an ATX board for 14th, 13th and 12th gen Intel Core, Pentium Gold and Celeron processors on LGA1700. A 14+1+1 Duet Rail power design with DrMOS, extended heatsink and M.2 Shield Frozr keep it stable, and it supports up to 256 GB of DDR5. It carries a 3 year limited warranty.
Key Features
- Intel Z790 chipset, LGA1700, ATX
- 4 x DDR5, up to 256 GB, up to 7200 MHz
- 2.5GbE, Wi-Fi 802.11ax, Bluetooth 5.3
- 3 x PCIe x16 and 1 x PCIe x1, PCIe 5.0 support
- 14+1+1 power, extended heatsink, M.2 Shield Frozr
- 3 year limited warranty listed
Product Information
Brand: MSI
Manufacturer: MSI
Model: Z790 GAMING PLUS WIFI
Product Type: Gaming Desktop Motherboard
Network and Communication
Wireless LAN #2: Yes
Wireless LAN: IEEE 802.11 a/b/g/n/ac/ax
Wireless LAN: Yes
Bluetooth Standard: Bluetooth 5.3
Connectivity
Bluetooth: Yes
Gigabit Ethernet: Yes
2.5Gigabit Ethernet: Yes
PCI Express Slots: 4
PCI Express Standard: PCI Express 3.0, PCI Express 4.0, PCI Express 5.0
PCI Express x16 Slots: 3
PCI Express x1 Slots: 1
Audio Channels: 7.1
Memory and Processor
Processor Supported: Celeron, Core, Pentium Gold
Memory Form Factor: DIMM, UDIMM
RAID Supported: Yes
Onboard Video: CPU Dependent Video
Processor Socket: Socket LGA-1700
Supported Memory Speed: 4800 megahertz, 5000 megahertz, 5200 megahertz, 5400 megahertz, 5600 megahertz, 5800 megahertz, 6000 megahertz, 6200 megahertz, 6400 megahertz, 6600 megahertz, 6800 megahertz, 7000 megahertz, 7200 megahertz
Memory Slots: 4
Ram Capacity: 256 GB
Chipset Manufacturer: Intel
Chipset Model: Z790
RAID Levels: 0, 1, 10, 5
Memory Technology: DDR5 SDRAM
Total Processor Supported: 1
Physical Characteristics
Form Factor: ATX
Dimensions and Weight
Width: 12 inch
Depth: 9.6 inch
Warranty
Limited Warranty: 3 Year
Not sure this board fits your build? Send us your processor, memory, case and power supply details, and the DatorPro team will confirm compatibility before you order.
