Product Information

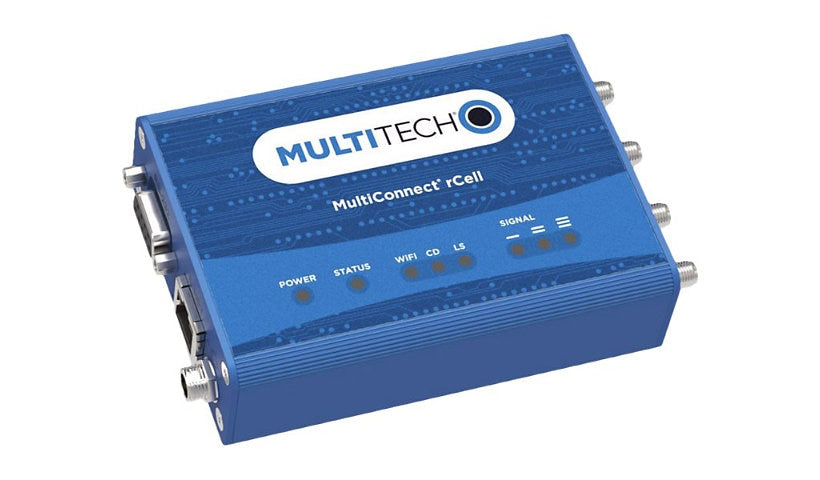

The Multi-Tech MultiConnect rCell 100 (MTR-LNA7-B07-US) is a rugged cellular router for M2M communications in an aluminum housing. It provides 802.11b/g/n Wi-Fi, Bluetooth 2.1 EDR, a 10/100 Ethernet LAN port and RS-232 serial, with a cellular modem rated up to 150 Mbps and IPsec VPN.
Key Features
- Cellular modem up to 150 Mbps, 1 x Mini SIM
- 802.11b/g/n Wi-Fi, Bluetooth 2.1 EDR
- 1 x 10/100 RJ-45 LAN, RS-232 DB-9
- IPsec VPN, stateful packet inspection
- Aluminum housing, rugged design
- Power adapter and network cable
Product Information
Product Type #2: Wireless cellular modem
Brand: Multi-Tech
Manufacturer: MultiTech Systems
Product Line: Multi-Tech MultiConnect rCell 100 Series
Model: MTR-LNA7-B07-US
Product Type: Wireless router
Product Type: Wireless cellular modem
Packaged Quantity: 1
Color Category: Blue
Country: United States
Network and Communication
Connectivity Technology: Wired, Wireless
Data Link Protocols: Bluetooth 2.1 EDR, Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, RS-232
Encryption: AES, IKE, Triple DES
Modem Transmission Data Rate: 150 MBps
Wireless LAN: 802.11b/g/n, Bluetooth 2.1 EDR
Antenna Form Factor: External detachable
Key Features: VPN support
Features: Aluminum housing, IPSec Virtual Private Network (VPN), MIMO technology, Rugged, Stateful Packet Inspection (SPI), VPN support
Connectivity
Interface Provided: Antenna: 1 x RP-SMA, Antenna: 2 x SMA, LAN: 1 x 10Base-T/100Base-TX - RJ-45, Serial: 1 x RS-232 - 9 pin D-Sub (DB-9)
Expansion Slots: 1 (total) / 1 (free) x Mini-SIM
Power
Device Type: External power adapter
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 185 degree Fahrenheit
Operating Humidity: 15 - 93% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Desktop
Dimensions and Weight
Height: 1.1 inch
Width: 3 inch
Depth: 4.2 inch
Weight: 8.15 ounce
Included Items
Cables: 1 x network cable
Certifications and Listing
Compliant Standards #2: FCC Class B certified, MIL-STD 810G, SAE J1455, UL 60950-1
Compliant Standards: Bluetooth 2.1, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Compliant Standards: FCC Class B certified, MIL-STD 810G, SAE J1455, UL 60950-1
Warranty
Service Activation: No
