Product Information

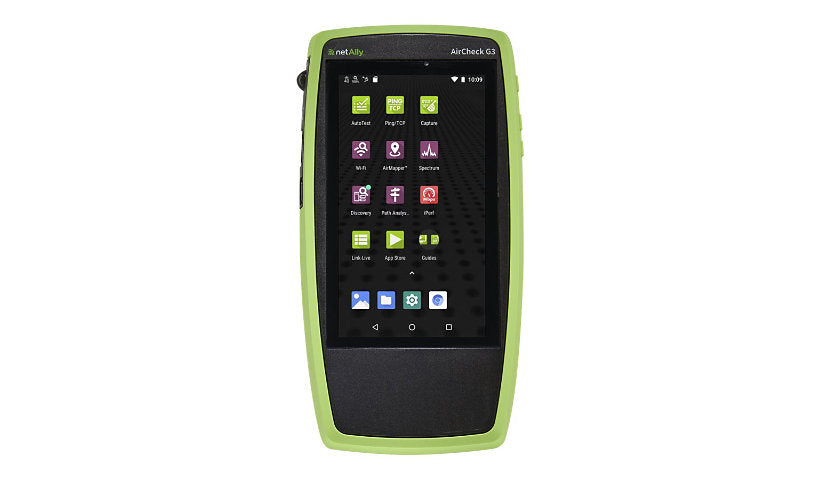

The NetAlly AirCheck G3 Pro is a handheld Wi-Fi tester for troubleshooting, validation, analysis and site surveys across all three bands. It discovers 802.11a/b/g/n/ac/ax networks, supports Wi-Fi 6 and 6E and Bluetooth 5.0 LE, and has 8 GB memory. A 5 inch 720 x 1280 color screen, USB-C, two USB-A ports and an SMA antenna port are built in. The lithium ion battery lasts up to 10 hours. It includes the AIRCHECK-G3-PRO mainframe with 1 year of AllyCare support, a shoulder sling bag, an AC charger and a quick start guide.
Key Features
- Wi-Fi 6/6E tri-band
- Site surveys, troubleshooting
- Bluetooth 5.0 LE
- 5 inch color screen
- Up to 10 hour battery
- 1 year AllyCare support
Product Information
Tests, Tools and Measurements: IEEE 802.11 a/b/g/n/ac/ax discovery
Media: Radio
Brand: NetAlly
Manufacturer: NetAlly
Product Line: NetAlly AirCheck
Model: G3 Pro
Product Type: Network tester
Packaged Quantity: 1
Network and Communication
Features: 8 GB memory, Bluetooth 5.0 Low Energy (BLE), Wi-Fi 6/6E
Bundled Services: 1 year AllyCare support
Connectivity
Connectors: 24 pin USB type C, 4 pin USB type A x 2, SMA
Power
Battery Chemistry: Lithium ion
Battery Voltage: 3.63 volt
Output Voltage: 15 V
Battery Run Time (Up To): 10 hour(s)
Input Voltage: 100-240 V
Technical Information
Color Support: Color
Display Diagonal Size: 5 inch
Display Diagonal Size (metric): 12.7 centimetre
Display Resolution: 720 x 1280 pixels
Display Screen: LCD
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 0 - 90% RH (non-condensing)
Min Storage Temperature: -4 degree Fahrenheit
Max Storage Temperature: 140 degree Fahrenheit
Physical Characteristics
Max Altitude Operating: 13120 ft
Dimensions and Weight
Height: 7.7 inch
Width: 4 inch
Depth: 1.7 inch
Weight: 16.93 ounce
Included Items
Included Accessories: Shoulder sling bag
Certifications and Listing
Compliant Standards: CISPR 11 Group 1 Class A, CSA, EN 61010-1 2nd edition, FCC, IEC 61326-1, RoHS
