Product Information

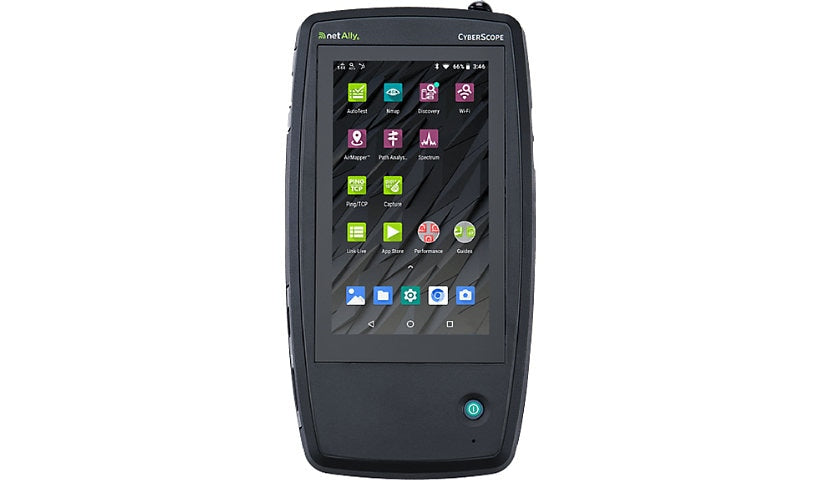

The NetAlly CyberScope XRF is a handheld network tester for site and security assessment, not a firewall. It has a 5 inch 720 x 1280 touchscreen, operates from 0 to 45 °C at up to 90 percent humidity, and comes with 1 year of AllyCare support.
Key Features
- Handheld network tester
- 5 in touchscreen
- 720 x 1280 display
- 0 to 45 °C operation
- 1 year AllyCare support
- Site security assessment
Product Information
Tests, Tools and Measurements: Pair length, PoE, Tests for crossed wires, Tests for opens, Tests for shorts, Tests for split pairs, Tests for straight through, WireView ID
Media: Copper, Fiber
Brand: NetAlly
Manufacturer: NetAlly
Product Line: NetAlly CyberScope
Model: XRF
Product Type: Network tester
Packaged Quantity: 1
Network and Communication
Features #2: Touchscreen
Features: 8 GB memory, AutoTest, Nmap technology, Remote network access, Topology mapping, VLAN support
Features: Touchscreen
Bundled Services: 1 year AllyCare support
Connectivity
Connectors: 24 pin USB type C, RJ-45, SFP, USB type A
Power
Battery Chemistry: Lithium ion
Battery Voltage: 7.2 volt
Output Voltage: 15 V
Battery Run Time (Up To): 4 hour(s)
Input Voltage: 100-240 V
Technical Information
Color Support: Color
Display Diagonal Size: 5 inch
Display Diagonal Size (metric): 12.7 centimetre
Display Resolution: 720 x 1280 pixels
Display Screen: LCD
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 90% (10 - 35 °C), 75% (35 - 45 °C) RH (non-condensing)
Min Storage Temperature: -4 degree Fahrenheit
Max Storage Temperature: 140 degree Fahrenheit
Dimensions and Weight
Height: 7.7 inch
Width: 4.1 inch
Depth: 2.2 inch
Weight: 26.81 ounce
Included Items
Included Accessories: 1G/10G SFP+ SX/SR 850nm multimode optical transceiver module, Hard case, Power adapter, WireView wire mapper (#1)
Cables: 1 x RJ-45 coupler
Certifications and Listing
Compliant Standards: IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
Warranty
Manufacturer Limited Warranty: 1 year
