Product Information

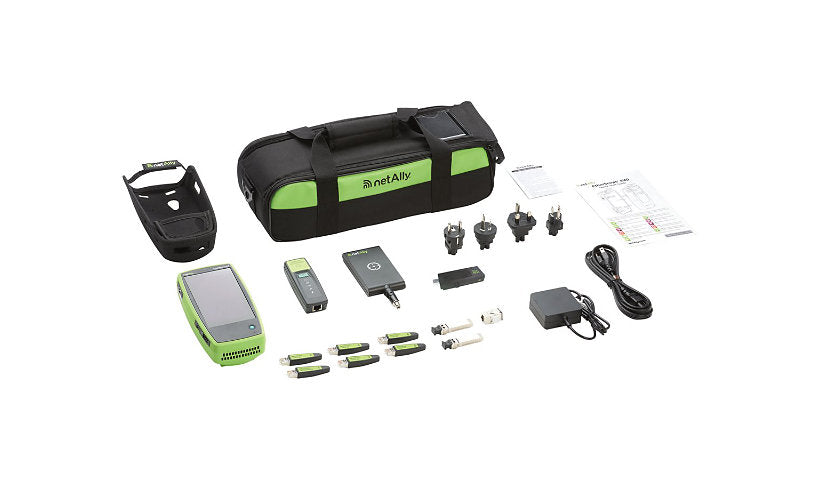

The NetAlly EtherScope nXG Professional Kit (EXG-300-KT-X2) is a portable network expert for copper, fiber and Wi-Fi. The EXG-300 mainframe covers tri-band Wi-Fi 6/6E and Bluetooth 5.0 LE, line rate throughput and iPerf tests, AutoTest, PoE and cable checks for opens, shorts, crossed and split pairs and pair length, and uploads to Link-Live cloud. It has 2 RJ-45 ports, an SFP port, USB-C, USB-A, microSD, 8 GB memory, a 5 inch 720 x 1280 touchscreen and a 7.2 V battery for up to 4 hours. The kit adds the NXT-2000 tri-band spectrum analyzer, 1G/10G SFP+ 850 nm multimode and 1310 nm singlemode transceivers, an external tri-band antenna, the Test Accessory, WireView 1 to 6, an RJ-45 inline coupler, power adapter, holster, medium soft case and 1 year of AllyCare support.
Key Features
- Copper, fiber and Wi-Fi
- Tri-band Wi-Fi 6/6E
- Line rate, iPerf tests
- NXT-2000 spectrum analyzer
- 10G SM and MM SFP+
- 1 year AllyCare support
Product Information
Tests, Tools and Measurements: Line rate throughput testing, Network connectivity, Open circuit, Pair length, Ping, PoE, Short circuit, Tests for crossed wires, Tests for split pairs, Wireless LAN testing
Media: Copper, Fiber, Radio
Brand: NetAlly
Manufacturer: NetAlly
Product Line: NetAlly EtherScope
Model: nXG Portable Network Expert Professional Kit
Product Type: Network tester kit
Packaged Quantity: 1
Network and Communication
Features #2: Touchscreen
Features: 8 GB memory, AutoTest, Bluetooth 5.0 Low Energy (BLE), iPerf, Link-Live Cloud Service, microSD card slot, USB connectivity, USB powered, Wi-Fi 6/6E, Wi-Fi IEEE 802.11 a/b/g/n/ac/ax; full tri-band (2.4 GHz, 5 GHz, 6 GHz )
Features: Touchscreen
Bundled Services: 1 year AllyCare support
Connectivity
Connectors: 24 pin USB type C, 4 pin USB type A, RJ-45 x 2, SFP
Power
Battery Chemistry: Lithium ion
Battery Voltage: 7.2 volt
Output Voltage: 15 V
Battery Run Time (Up To): 4 hour(s)
Input Voltage: 100-240 V
Technical Information
Fiber Type: Multi-mode, Single-mode
Color Support: Color
Display Diagonal Size: 5 inch
Display Diagonal Size (metric): 12.7 centimetre
Display Resolution: 720 x 1280 pixels
Display Screen: LCD
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 0 - 90% (10 - 35 °C), 0 - 75% (35 - 45 °C)
Min Storage Temperature: -4 degree Fahrenheit
Max Storage Temperature: 140 degree Fahrenheit
Dimensions and Weight
Height: 7.7 inch
Width: 4.1 inch
Depth: 2.2 inch
Weight: 26.81 ounce
Included Items
Included Accessories: 1G/10G SFP+ LX/LR 1310nm singlemode optical transceiver module, 1G/10G SFP+ SX/SR 850nm multimode optical transceiver module, EXG-LR10G holster, External antenna, G3 power adapter, Medium soft case, NXT-2000 spectrum analyzer, RJ-45 inline coupler, Test accessory, WireView wire mappers (#1-#6)
Certifications and Listing
Compliant Standards: CISPR 11 Group 1 Class A, CSA, EMC, FCC 47 CFR 15, IEC 61010-1:2010, IEC 61326-1, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, RCM
