Product Information
The NetAlly EtherScope nXG (EXG-300) is an Android based handheld analyzer for deploying, maintaining and documenting Wi-Fi and Ethernet access networks. It tests line rate throughput, iPerf, ping, connectivity, PoE and cabling (opens, shorts, crossed and split pairs, pair length), with AutoTest, Wi-Fi 6/6E, Bluetooth 5.0 LE and Link-Live cloud. It has RJ-45, SFP, SMA, USB-C and USB-A ports, a 5 inch 720 x 1280 touchscreen and a lithium ion battery for up to 4 hours. It includes a 1G/10G SFP+ 850 nm multimode module, power adapter, RJ-45 coupler, WireView 1, a bag, quick start guide and 1 year of AllyCare support, with a 1 year warranty. The specs list dual band Wi-Fi while the description says full tri-band, so please confirm.
Key Features
- Wi-Fi and Ethernet analyzer
- Line rate and iPerf tests
- PoE and cable tests
- 10G multimode SFP+ incl.
- 5 inch touchscreen
- 1 year AllyCare, warranty
Product Information
Tests, Tools and Measurements: Line rate throughput testing, Network connectivity, Open circuit, Pair length, Ping, PoE, Short circuit, Tests for crossed wires, Tests for split pairs, Wireless LAN testing
Media: Copper, Fiber, Radio
Brand: NetAlly
Manufacturer: NetAlly
Product Line: NetAlly EtherScope
Model: nXG Portable Network Expert
Product Type: Network tester
Packaged Quantity: 1
Network and Communication
Features #2: Touchscreen
Features: Android-based, AutoTest, Bluetooth 5.0 Low Energy (BLE), iPerf, Link-Live Cloud Service, USB connectivity, USB powered, Wi-Fi 6/6E, Wi-Fi IEEE 802.11 a/b/g/n/ac/ax; dual band (2.4 GHz and 5 GHz)
Features: Touchscreen
Bundled Services: 1 year AllyCare support
Connectivity
Connectors: 24 pin USB type C, 4 pin USB type A, RJ-45, SFP, SMA
Power
Battery Chemistry: Lithium ion
Battery Voltage: 7.2 volt
Battery Run Time (Up To): 4 hour(s)
Input Voltage: 100-240 V
Technical Information
Fiber Type: Multi-mode, Single-mode
Color Support: Color
Display Diagonal Size: 5 inch
Display Diagonal Size (metric): 12.7 centimetre
Display Resolution: 720 x 1280 pixels
Display Screen: LCD
Dimensions and Weight
Height: 7.7 inch
Width: 4.1 inch
Depth: 2.2 inch
Weight: 27.16 ounce
Included Items

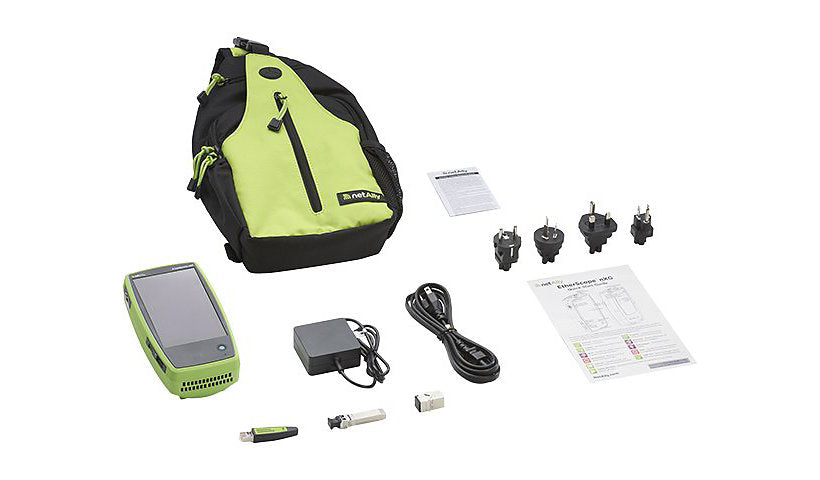

Included Accessories: 1G/10G SFP+ SX/SR 850nm multimode optical transceiver module, Carrying case, G3 power adapter, WireView wire mapper (#1)
Cables: RJ-45 coupler
Certifications and Listing
Compliant Standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
Warranty
Manufacturer Limited Warranty: 1 year
