Product Information

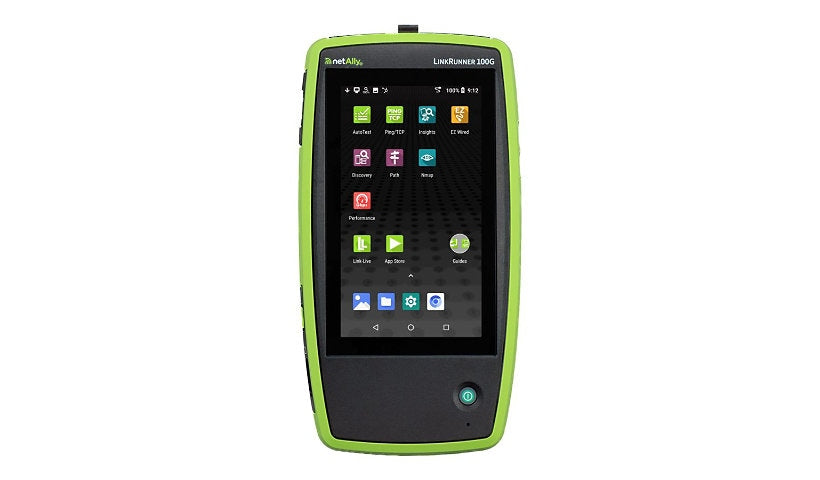

The NetAlly LinkRunner 100G is a compact, lightweight handheld for deploying, checking and servicing 25G to 100G Ethernet, giving physical layer visibility that once needed a cart of modular gear. AutoTest checks the switch port, its configuration, link speed and key services in seconds. It detects and validates QSFP28 module type, speed, FEC and interface settings across 25G, 40G, 50G and 100G singlemode, multimode, MTP/MPO and breakout links, and two units measure end to end Layer 3 performance. It has QSFP28, RJ-45, USB-C and USB-A ports, a 5 inch touchscreen and 8 GB flash. It includes an 850 nm multimode 100G QSFP28, 3 m fiber and MPO12 type A cables, an RJ-45 coupler, power adapter and carrying case.
Key Features
- 25G to 100G Ethernet
- QSFP28 optics validation
- AutoTest switch checks
- Layer 3 tests with two units
- 100G QSFP28 included
- 5 inch touchscreen
Product Information
Media: Copper, Fiber
Brand: NetAlly
Manufacturer: NetAlly
Product Line: NetAlly LinkRunner
Model: 100G
Product Type: Network tester
Packaged Quantity: 1
Network and Communication
Features #2: Touchscreen
Features: Build-in 8GB flash, USB connectivity
Features: Touchscreen
Connectivity
Connectors: 24 pin USB type C, 4 pin USB type A, QSFP28, RJ-45
Power
Battery Chemistry: Lithium ion
Battery Voltage: 7.2 volt
Output Voltage: 20 V
Battery Run Time (Up To): 3 days
Input Voltage: 100-240 V
Technical Information
Color Support: Color
Display Diagonal Size: 5 inch
Display Diagonal Size (metric): 12.7 centimetre
Display Resolution: 720 x 1280 pixels
Display Screen: LCD
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 0 - 90% RH (non-condensing)
Min Storage Temperature: -4 degree Fahrenheit
Max Storage Temperature: 140 degree Fahrenheit
Dimensions and Weight
Height: 7.7 inch
Width: 4.1 inch
Depth: 2.8 inch
Weight: 31.74 ounce
Included Items
Included Accessories: 3 m fiber patch cable, 3 m MPO12 type A cable, 850nm multimode 100 Gbps QSFP28 interface, Carrying case, Power adapter
Cables: 1 x RJ-45 coupler
Certifications and Listing
Compliant Standards: CSA, EMC, FCC, IEC 60721-3-7 Class 7M5, IEC 61010-1:2010, IEC 61326-1
